A/C Compressor Clutch Relay

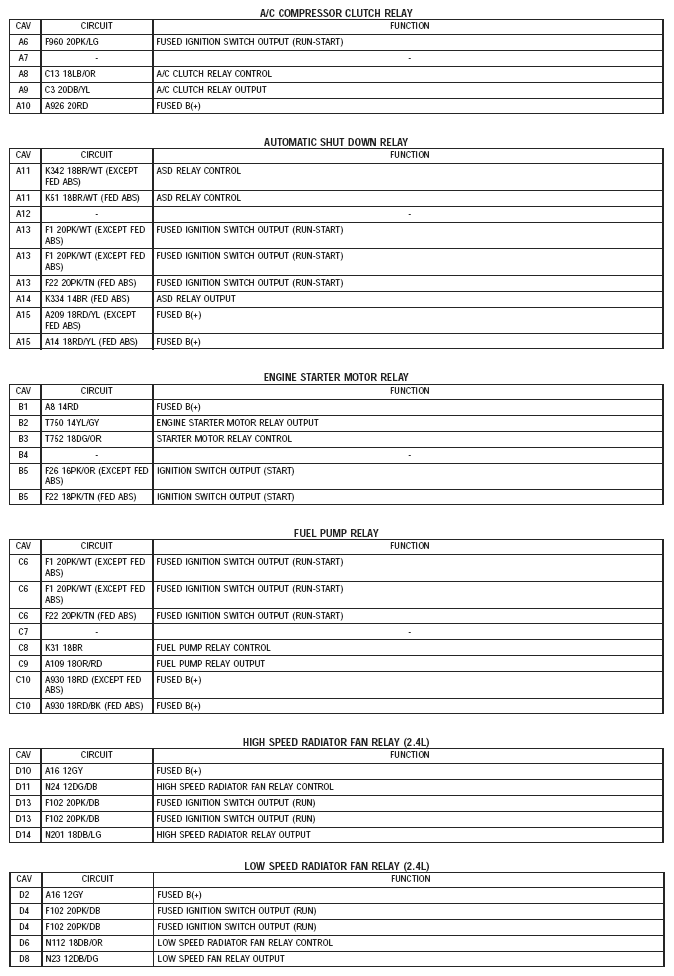

Fig 1: Power Distribution Center Relays Description Chart

G04764040

Courtesy of DAIMLERCHRYSLER CORPORATION
