Interior Lighting

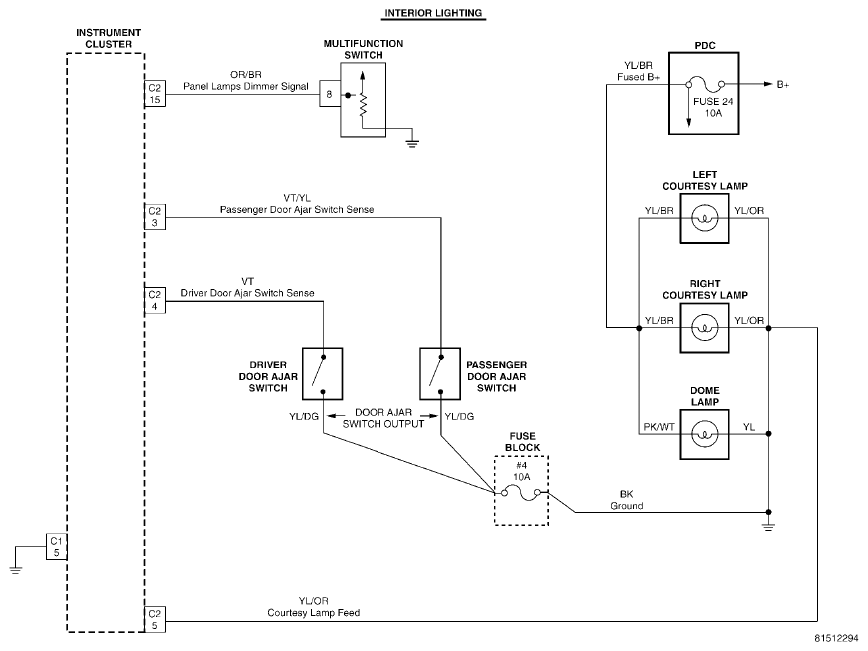

Fig 1: Interior Lighting - Schematic Diagrams

G04764122

Courtesy of DAIMLERCHRYSLER CORPORATION
