Power Steering Pressure Switch Connector End View

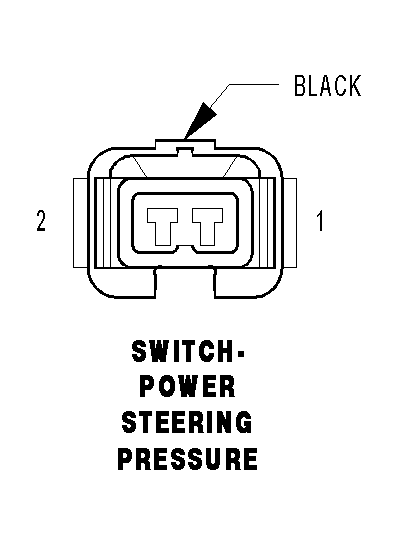

SWITCH-POWER STEERING PRESSURE - BLACK 2 WAY

GCKJ680257Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K66 20DB/WT P/S PRESSURE SIGNAL
2 Z939 20BK GROUND
