Fuel Temperature Sensor (Diesel) Connector End View

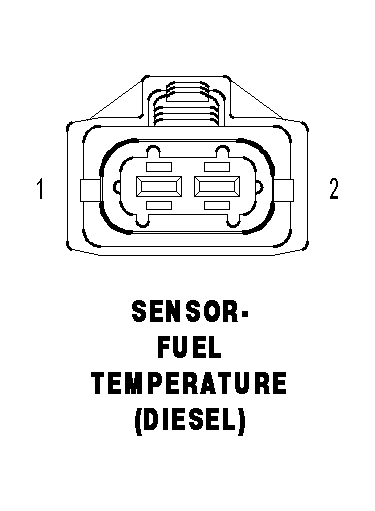

SENSOR-FUEL TEMPERATURE (DIESEL) - 2 WAY

GCKJ680174Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K900 20DB/DG SENSOR GROUND
2 K156 20BR/YL FUEL TEMPERATURE SENSOR SIGNAL
