Front Reading Lamp Connector End View

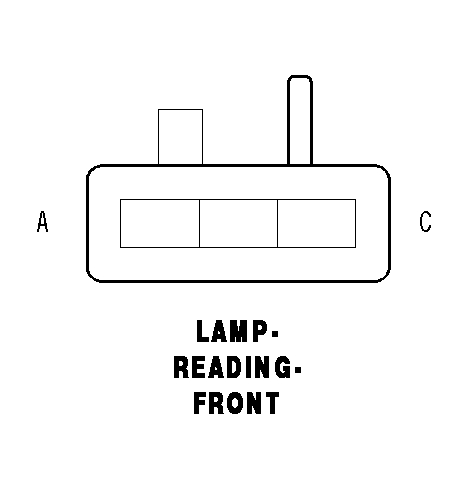

LAMP-READING-FRONT - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	M20 20YL/LB	COURTESY LAMP LOAD SHED
B	A908 20RD	FUSED B(+)
C	Z327 20BK/WT	GROUND
