Evaporative Emissions: Solenoid-EVAP/Purge: Installation

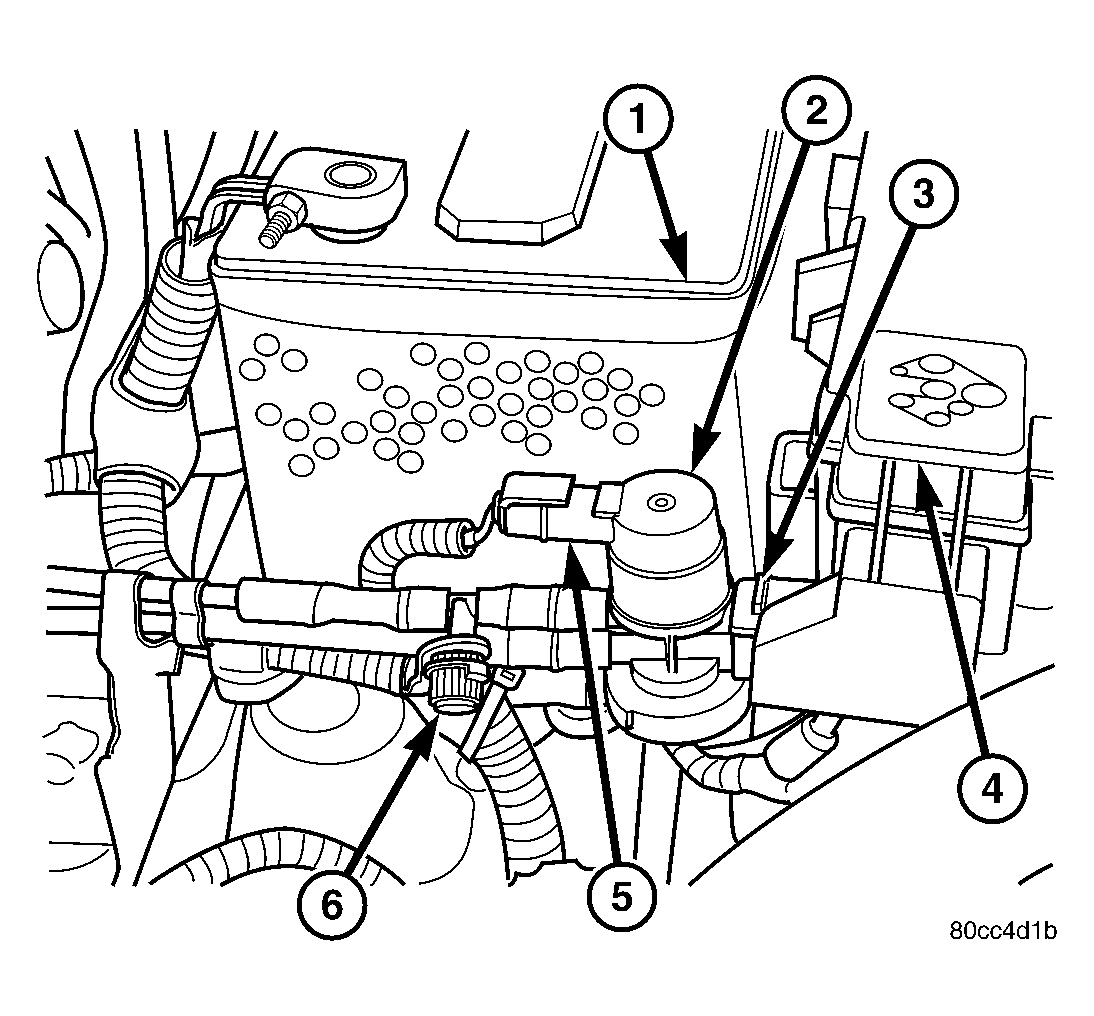

Fig 1: EVAP / Purge Solenoid Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY

2 - EVAP/PURGE SOLENOID LOCATION

3 - MOUNTING BRACKET

4 - POWER DISTRIBUTION CENTER (PDC)

5 - SOLENOID ELECTRICAL CONNECTOR

6 - EVAP SYSTEM TEST PORT

1. Slip EVAP canister purge solenoid (2) onto its mounting bracket (3).
2. Connect vacuum harness to solenoid.
3. Connect electrical connector (5) to solenoid.
