Circuit Schematic

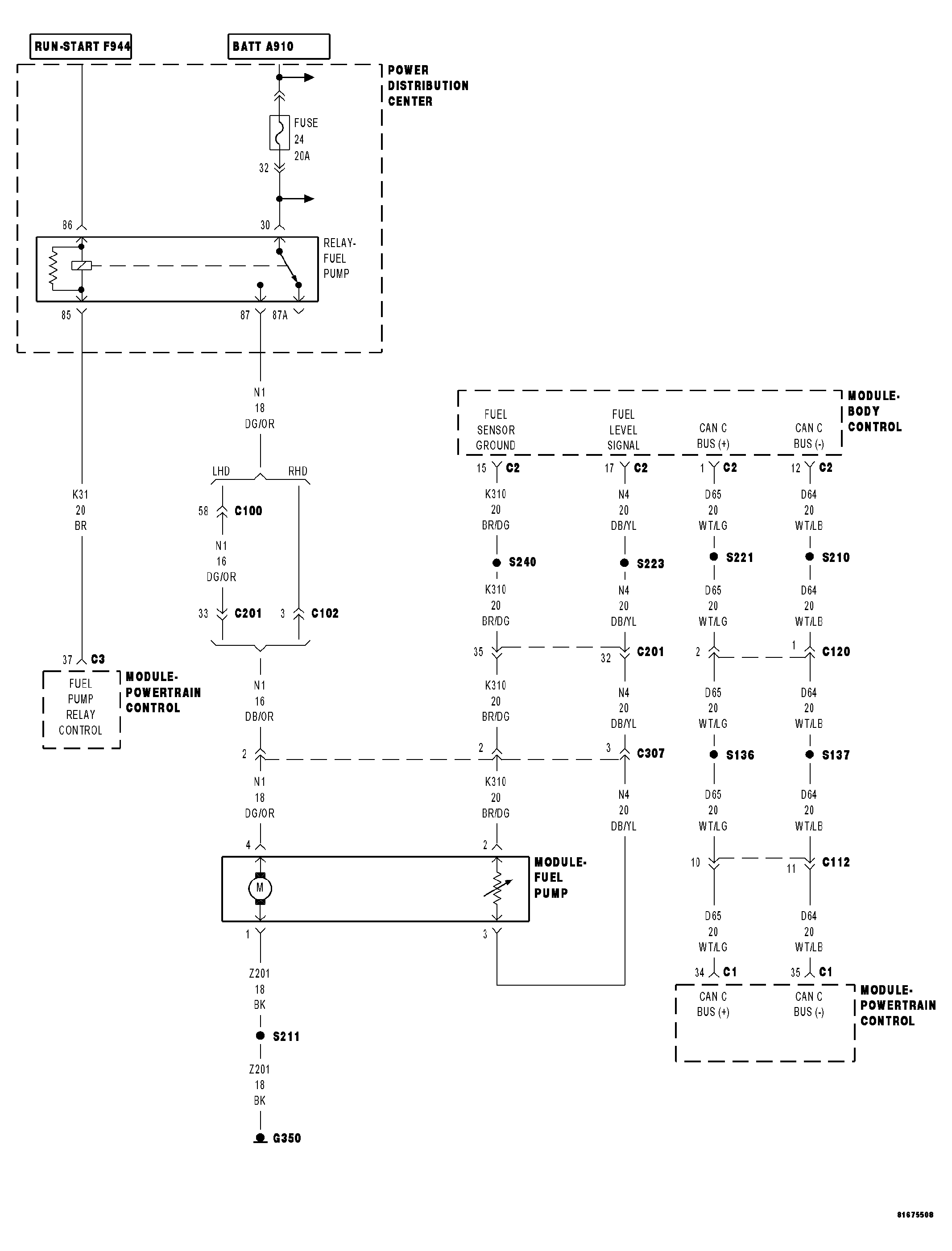

Fig 1: Fuel Pump Module Circuit Schematic

GC0046305

Courtesy of DAIMLERCHRYSLER CORP.
