Seal-Rear Output Shaft: Installation

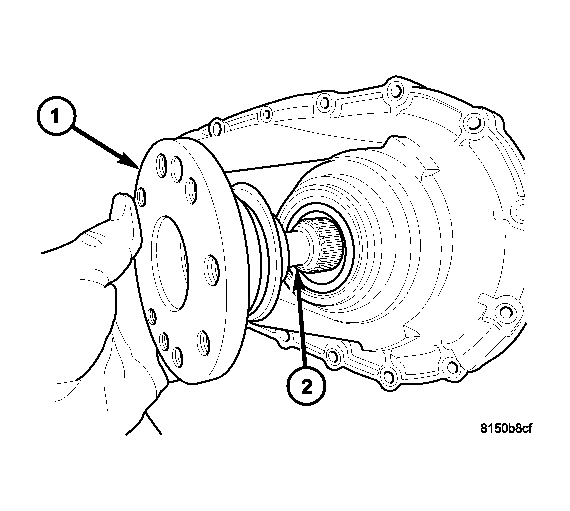

Fig 1: Remove/Install Rear Output Shaft Flange

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR OUTPUT SHAFT FLANGE

2 - REAR OUTPUT SHAFT

1. Install a new rear output seal into the rear cover with Installer C-3972A.
2. Install the rear output flange (1) onto the main shaft (2). See Fig 1.

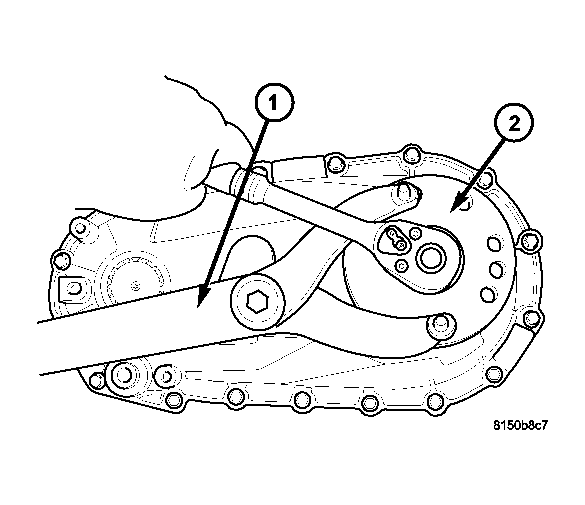

   Fig 2: Remove/Install Rear Output Shaft Nut

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - HOLDER C-3281

   2 - REAR OUTPUT SHAFT FLANGE

3. Using Holder C-3281 (1), install the rear companion flange (2) nut. Tighten the nut to 122-176 N.m (90-130 ft.lbs.). See Fig 2.
4. Install the rear propeller shaft. (Refer to DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER SHAFT - REMOVAL)
5. Check the transfer case fluid level. (Refer to TRANSMISSION/TRANSFER CASE/FLUID - STANDARD PROCEDURE)  Correct as necessary.
