Housing Assembly

WARNING: This page is about a different variant/trim than selected.

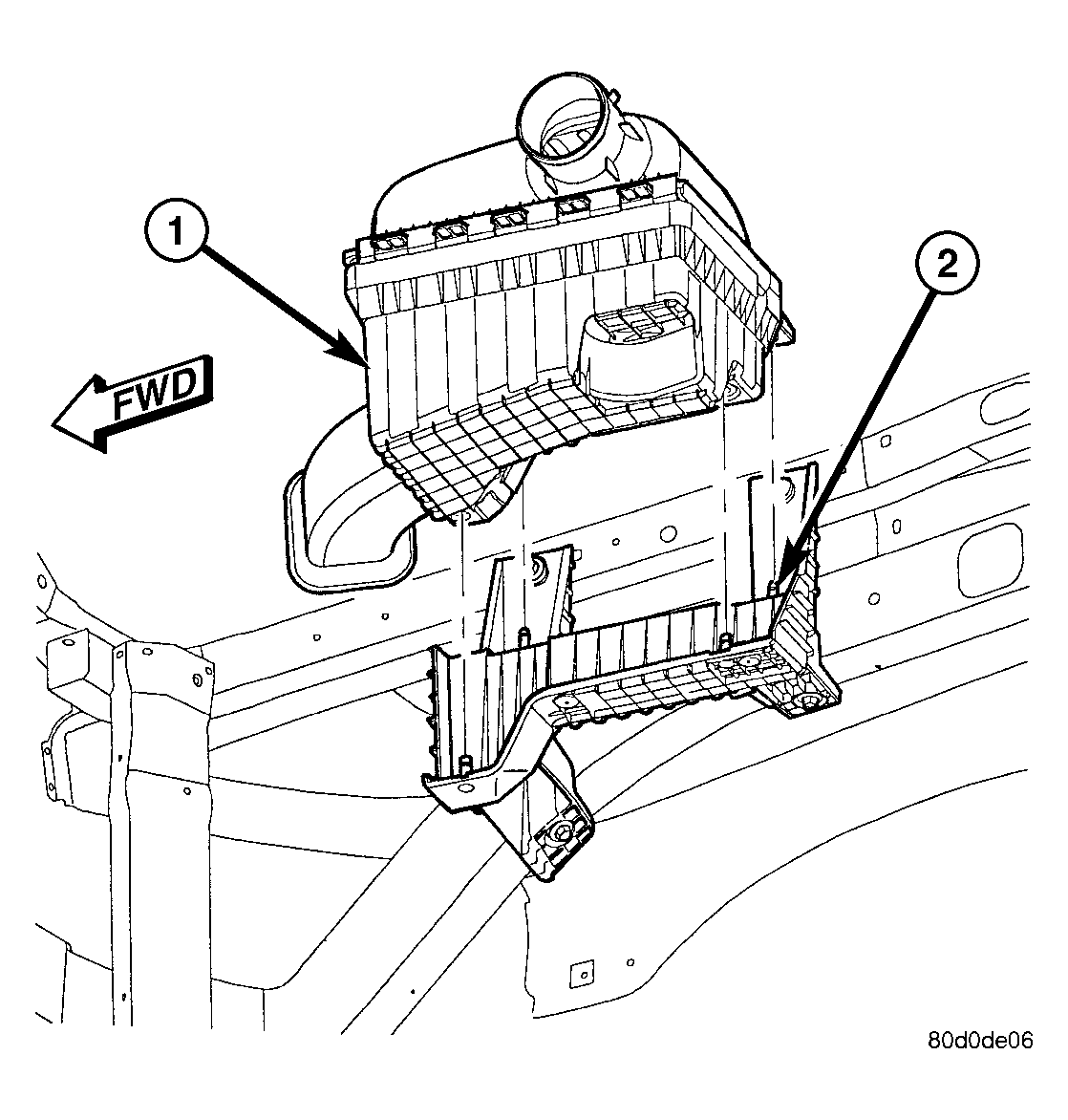

Fig 1: Air Cleaner Housing
GC0003948Courtesy of DAIMLERCHRYSLER CORP.
1 - AIR CLEANER HOUSING ASSEMBLY
2 - LOCATING PINS (4)
NOTE: Always unplug the Charge Air Temperature sensor before removing the resonator.
  1. Loosen clamp and disconnect air duct at air cleaner cover.
  2. Lift entire housing assembly (1)from 4 locating pins (2).
