Duct-Floor Console: Installation

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

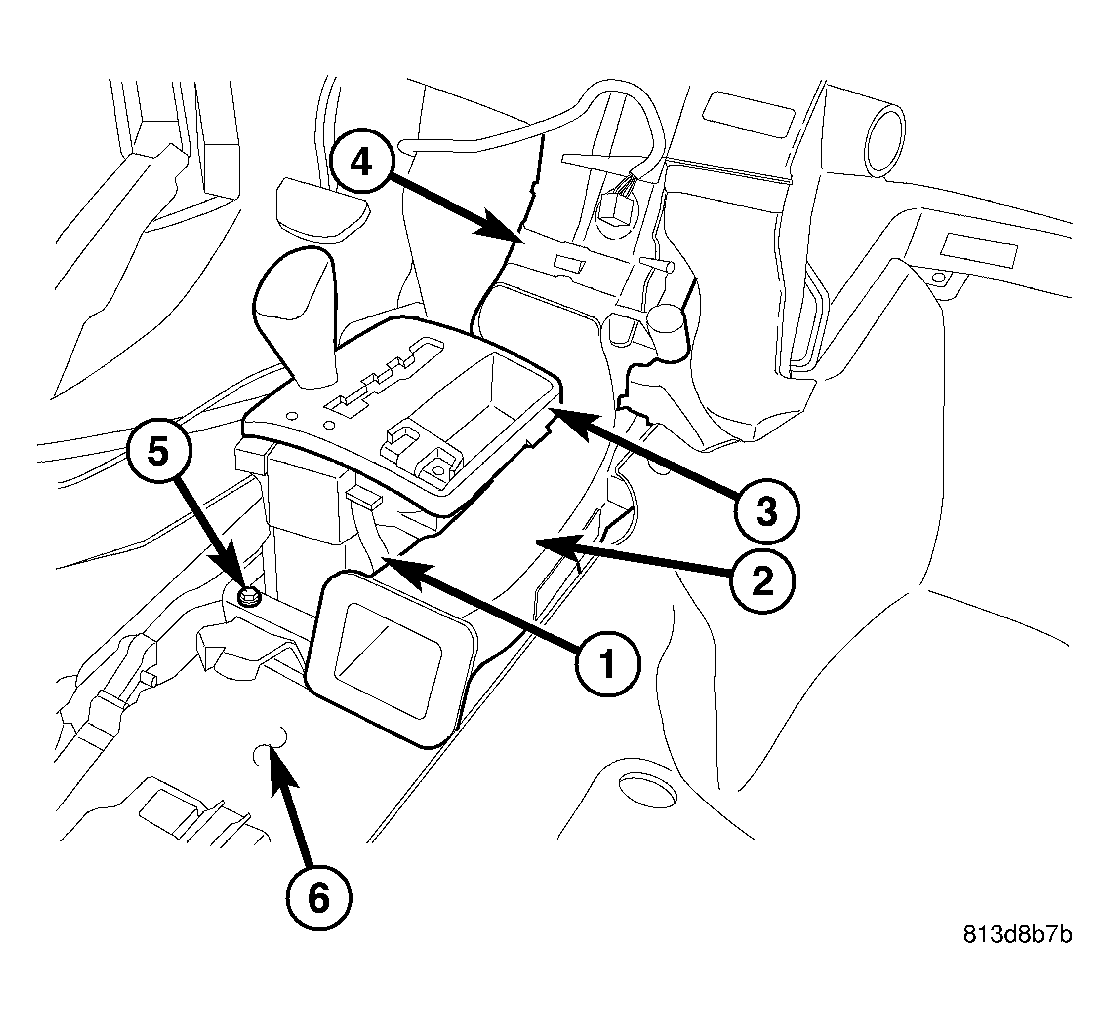

Fig 1: Front Console Duct
GC0028322Courtesy of CHRYSLER LLC
NOTE: LHD model shown. RHD model similar.
NOTE: Illustration shown with instrument panel removed for clarity.
  1. Position the floor console duct (2) into the vehicle.
  2. Connect the front console duct to the air distribution housing (4) and engage the retainer (1) to the gear selector (3).
  3. Install the floor console. Refer to INSTALLATION .
