Wiper Module: Installation

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

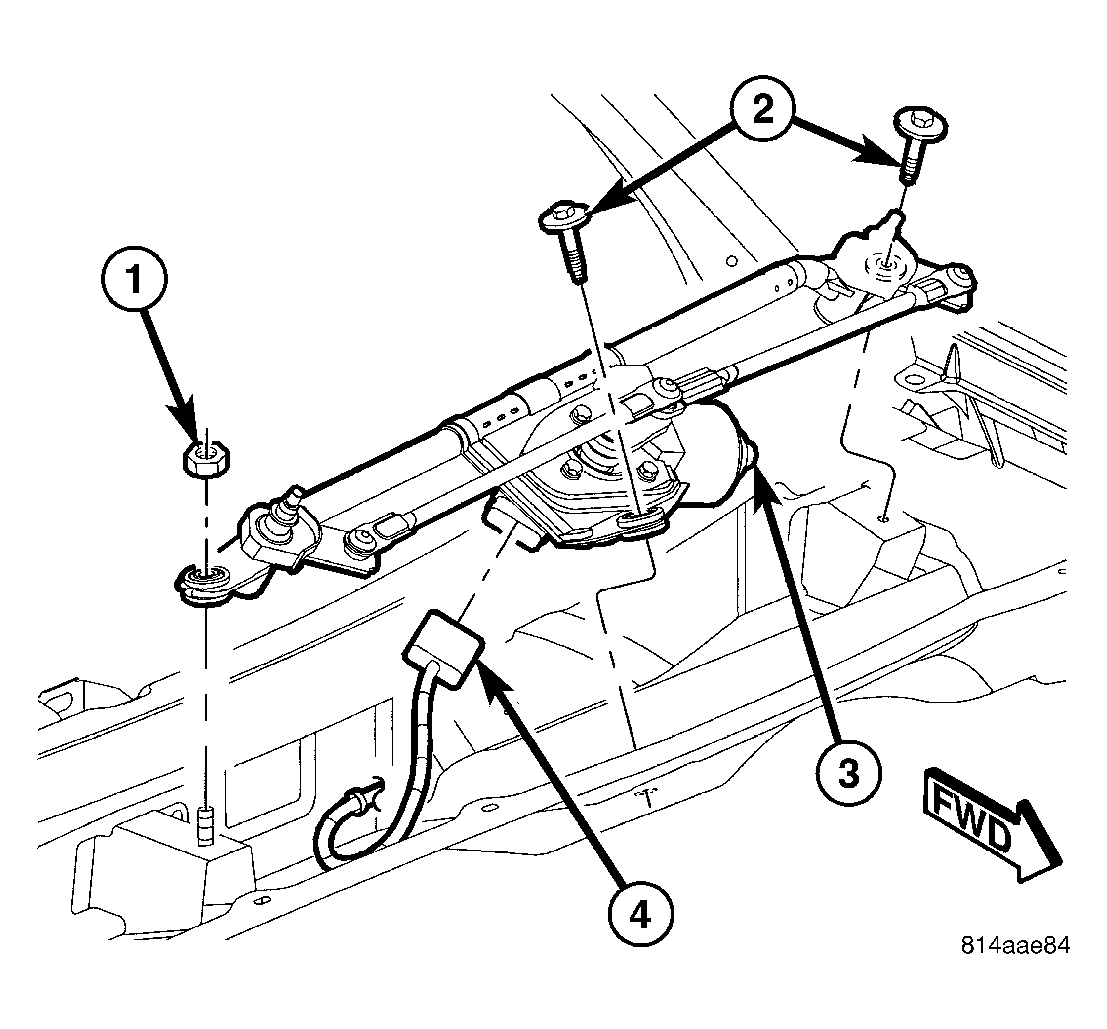

Fig 1: Front Wiper Module - Removal/Installation
GC0029500Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the front wiper module into the cowl plenum.
  2. Reconnect the wire harness connector (4) to the connector for the front wiper motor (3).
  3. Position the mount on the inboard end of the wiper module onto the stud within the cowl plenum.
  4. Loosely install the nut (1) and the two screws (2) that secure the wiper module within the cowl plenum.
  5. Working from left to right, tighten the two screws and the nut to 6 N.m (55 in. lbs.).
  6. Reinstall the cowl plenum cover/grille panel over the front wiper module. (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .
  7. Reinstall both front wiper arms onto the wiper pivots. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARM - INSTALLATION - FRONT) .
  8. Reconnect the battery negative cable.
