Rain Sensor Module: Removal

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

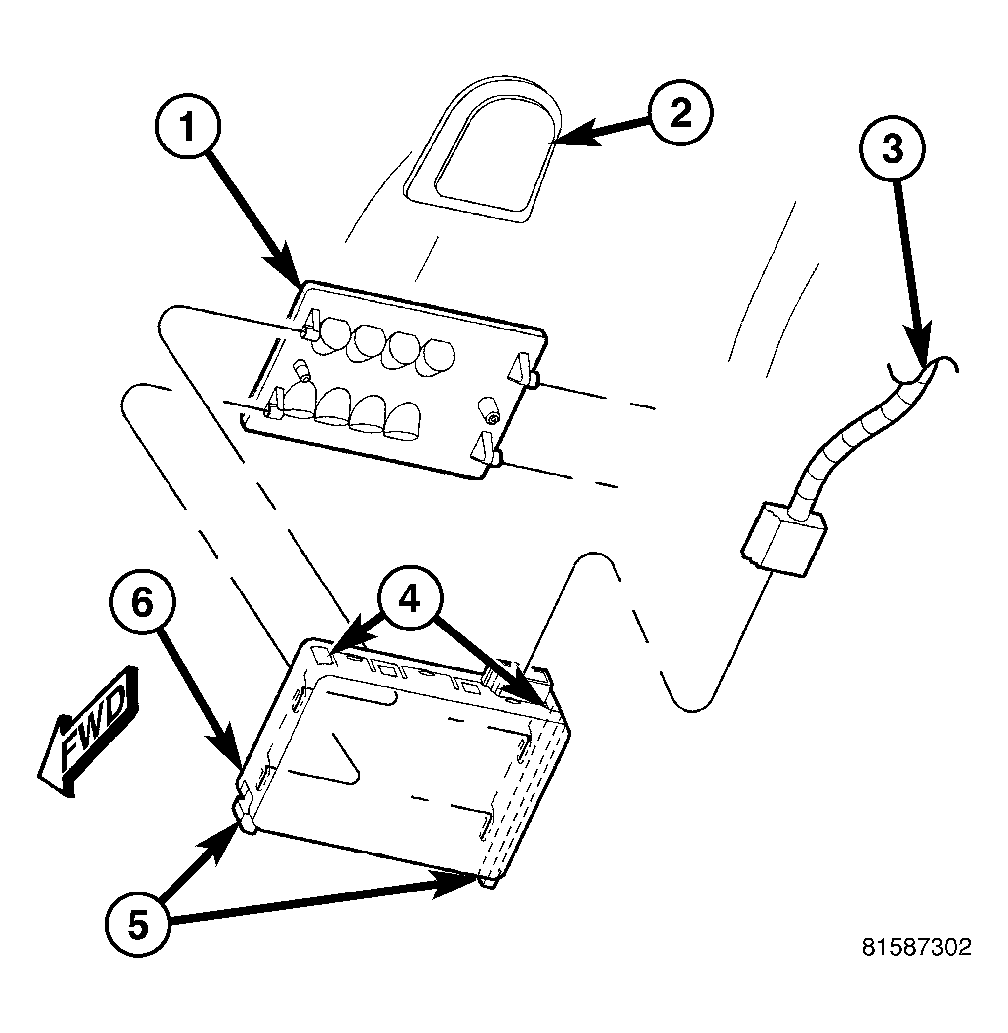

Fig 1: Removing/Installing Rain Sensor Module (RSM)
GC0047374Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the inside rear view mirror from the mounting button (2) on the windshield. (Refer to BODY/INTERIOR/REAR VIEW MIRROR - REMOVAL) .
  3. From the upper (connector) side of the Rain Sensor Module (RSM) (6) housing, use a small screwdriver inserted into the rectangular opening (4) on each outboard side to depress the two sliding cam locks (5) downward until they protrude from the lower side of the housing.
  4. Gently pull each sliding cam lock downward from the bottom of the RSM housing far enough to release them from the mounting bracket (1) on the windshield.
  5. Remove the RSM from the mounting bracket.
  6. Disconnect the overhead wire harness (3) connector from the RSM.
