Switch - Remote Radio: Installation

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

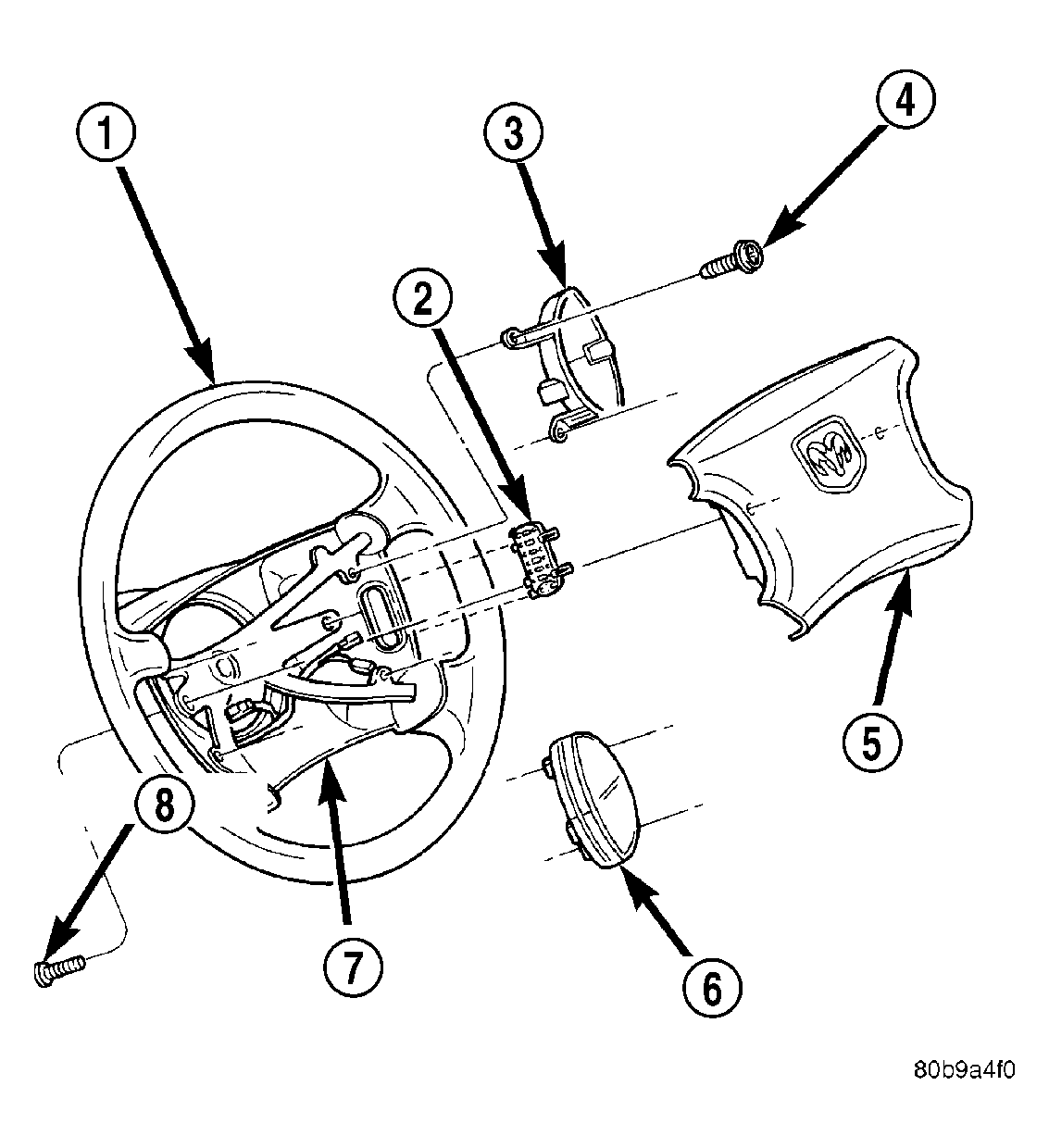

Fig 1: Identifying Remote Radio Switch
GC0028992Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the remote radio switch (2) to the mounting hole on the outside of the steering wheel rear trim cover. Be certain that the connector receptacle is oriented toward the bottom of the switch and pointed toward the center of the steering wheel.
  2. Press firmly and evenly on the remote radio switch until each of the switch latches is fully engaged in the mounting hole of the steering wheel rear trim cover.
  3. Reconnect the steering wheel wire harness connector to the connector receptacle of the remote radio switch.
  4. Install the speed control switch (3) (6) onto the steering wheel. (Refer to ELECTRICAL/SPEED CONTROL/SWITCH - INSTALLATION) .
  5. Install the driver side airbag (5) to the steering wheel (1). (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION) .
  6. Connect the battery negative cable.
