Section 47 (Audio System & Video System (Service Information)): Radio: Installation

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

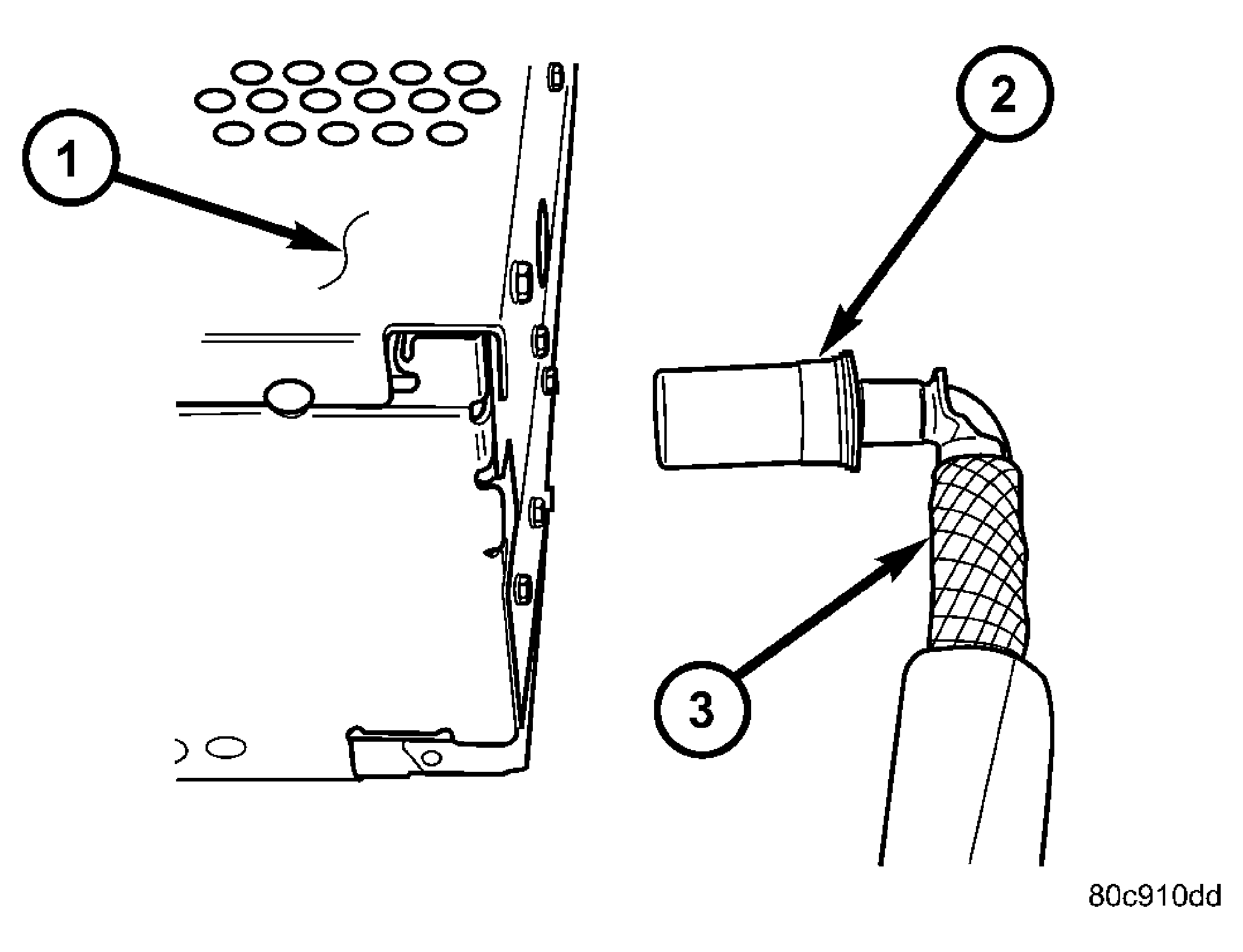

Fig 1: Locating Antenna At Radio
GC0022858Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect antenna cable (3) to radio (1).

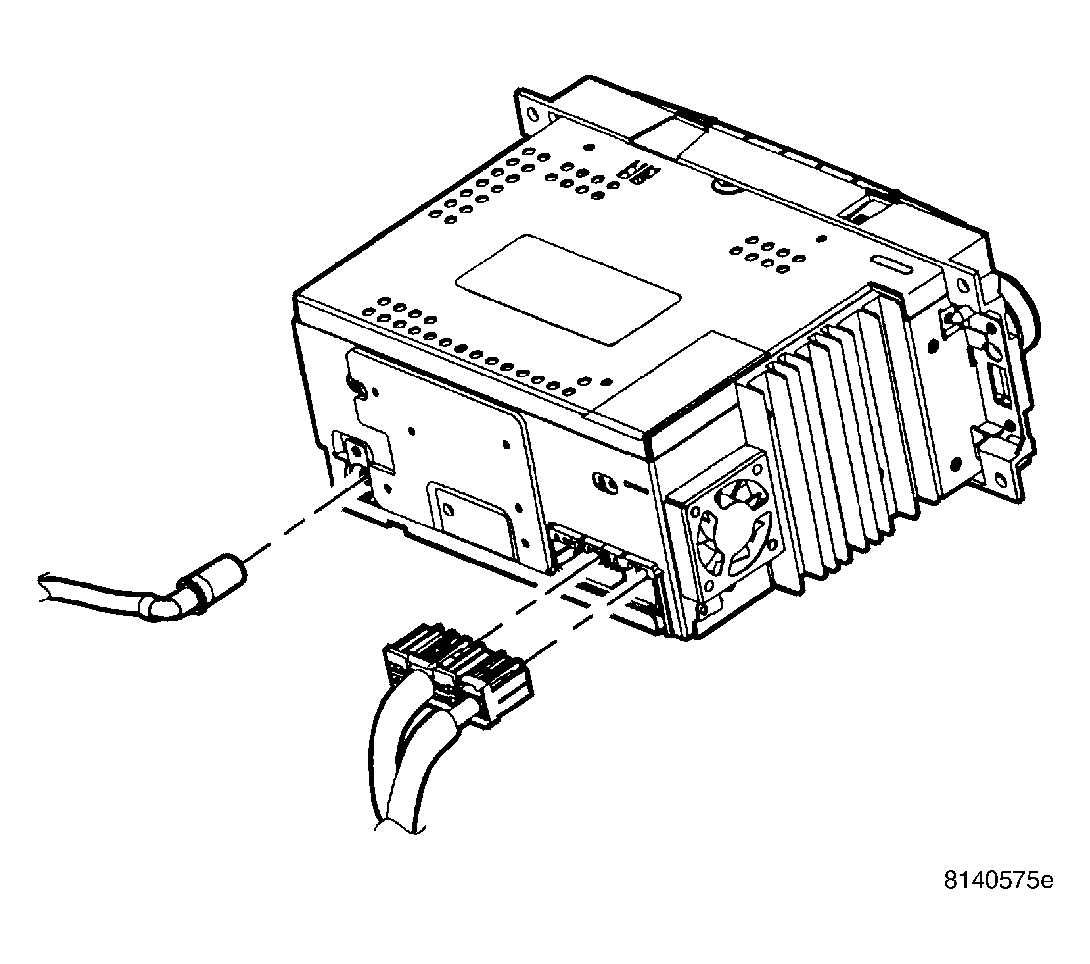

    Fig 2: Disconnecting/Connecting Radio Electrical Harness Connector
    GC0028978Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the electrical harness connector to radio.

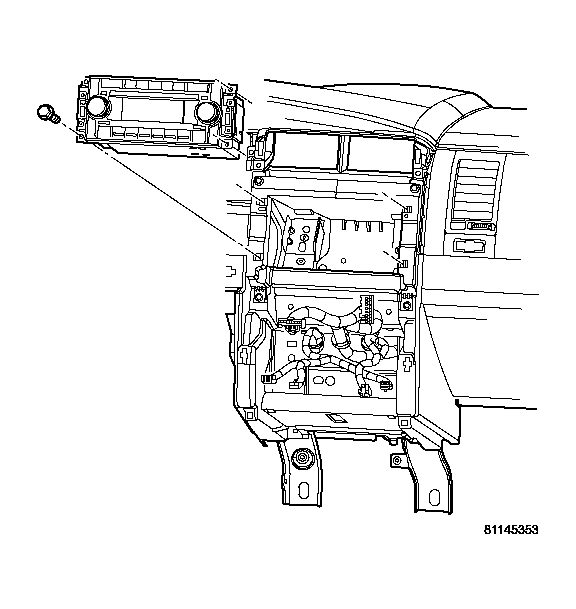

    Fig 3: Identifying Radio
    GC0028977Courtesy of DAIMLERCHRYSLER CORP.
  3. Position radio to instrument panel. Install and tighten mounting fasteners.
  4. Install instrument panel center bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION) .
