Circuit Breaker 2 Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

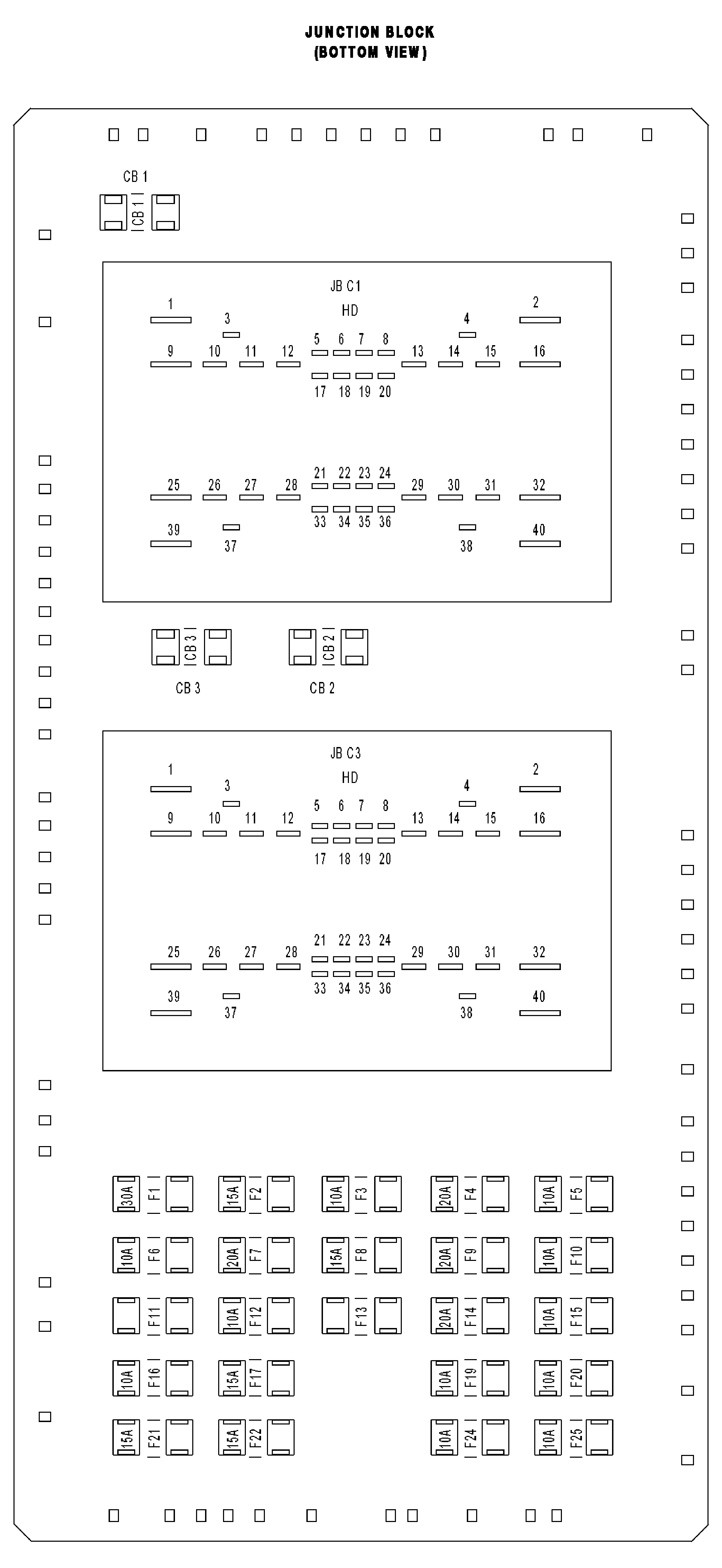

CIRCUIT BREAKER NO. 2 - 2 WAY

GCWH680100Courtesy of DAIMLERCHRYSLER CORP.
CB NO. AMPS FUSED CIRCUIT FUNCTION
1   INTERNAL FUSED B(+)
2   INTERNAL FUSED B(+)
