Support Plate: Installation

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Shoe Brake Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE SHOES

2 - HOLD DOWN CLIPS

3 - RETURN SPRING

4 - ACTUATOR LEVER

Install support plate on axle flange. Tighten attaching bolts (3) to 115 N.m (85 ft. lbs.).
Install parking brake cable in the brake actuator lever (4).

Fig 2: Park Brake Shoes
Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE SHOES

2 - SUPPORT PLATE
Install the park brake shoes (1) (Refer to BRAKES/PARKING BRAKE/SHOES - INSTALLATION) .

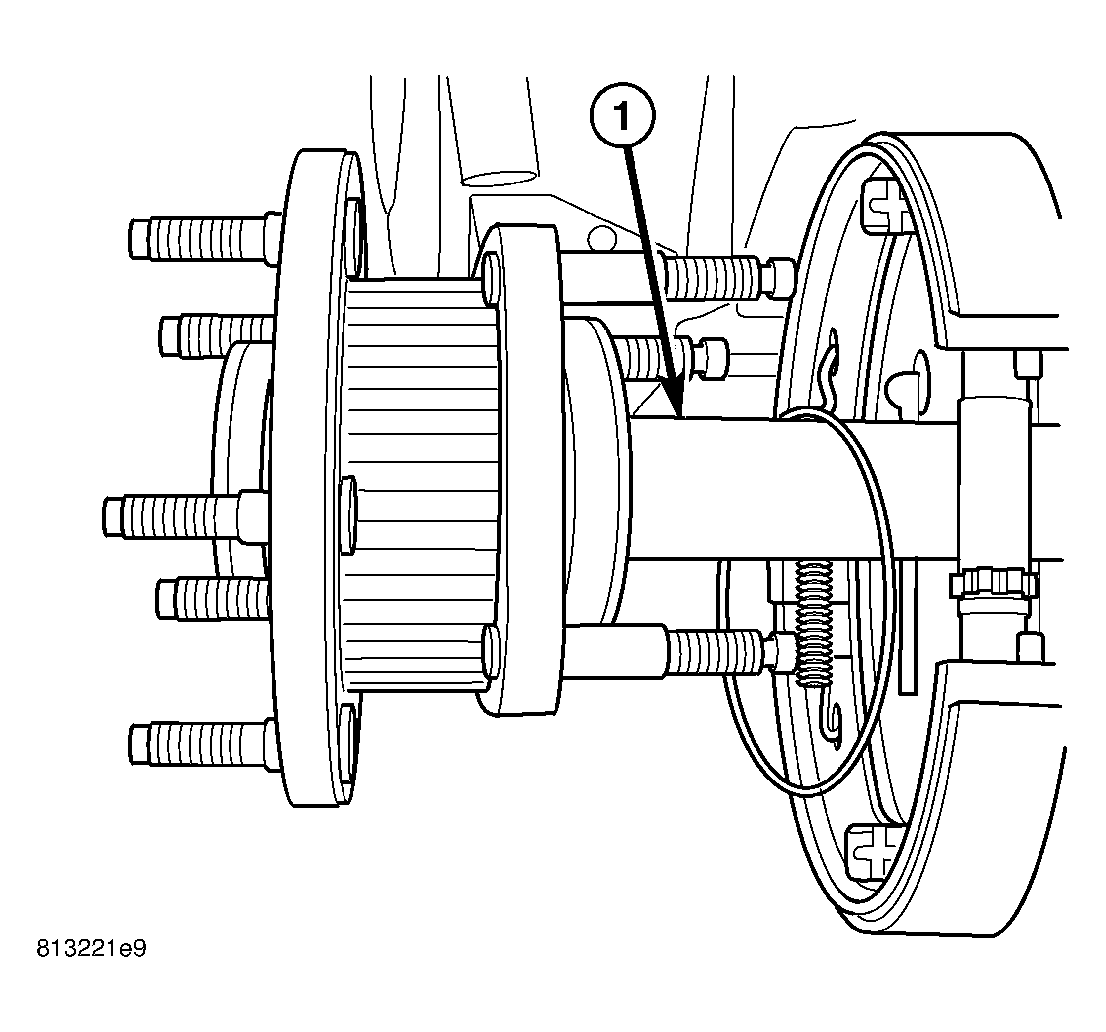

Fig 3: Axle Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Install axle shaft (1), (Refer to DIFFERENTIAL & DRIVELINE/REAR AXLE - C213R/AXLE SHAFTS - INSTALLATION) .

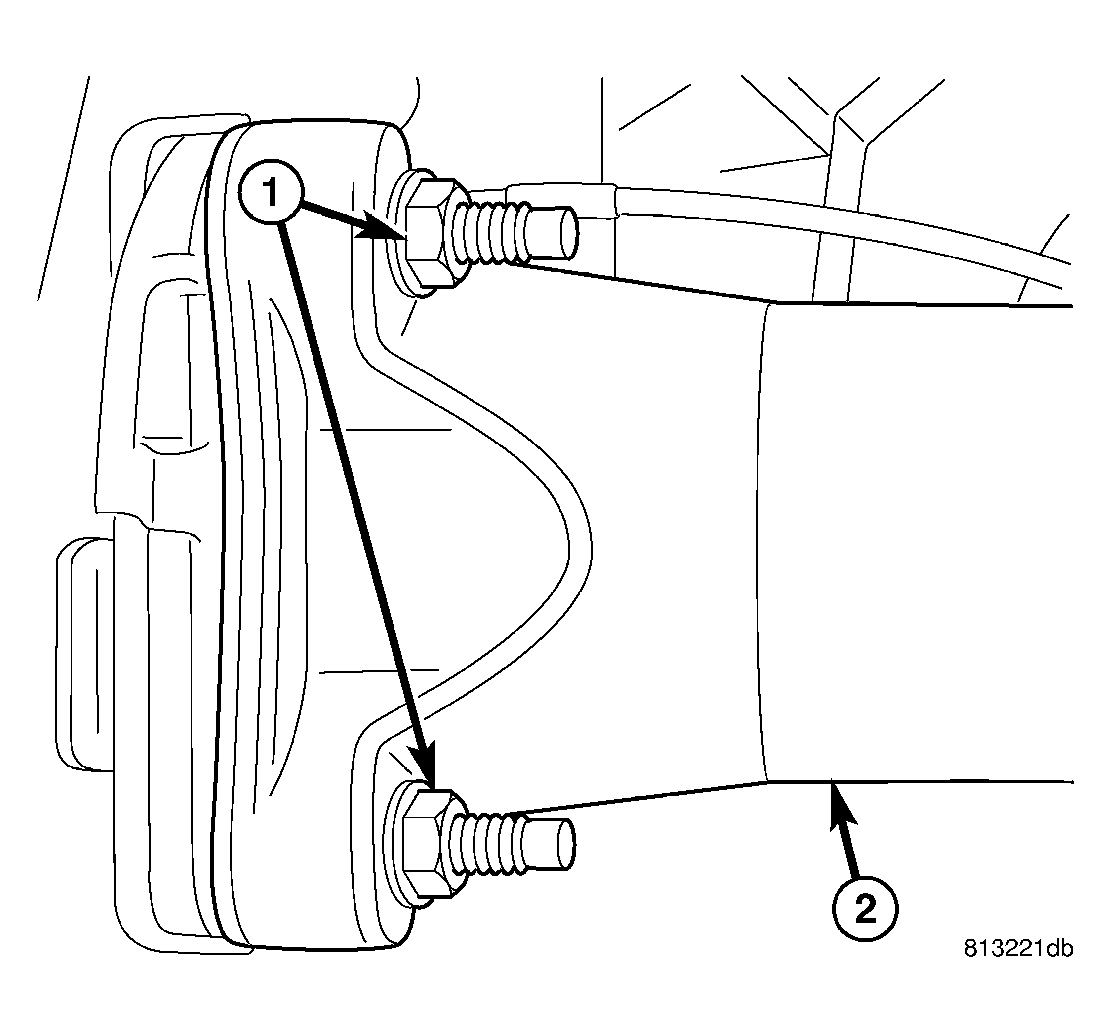

Fig 4: Axle Flange Nuts
Courtesy of DAIMLERCHRYSLER CORP.
Install the axle shaft flange nuts (1).

Fig 5: Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Install the wheel speed sensor (2).
Adjust brake shoes to drum with brake gauge (Refer to BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS) .

Fig 6: Park Brake Shoes
Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE SHOES

2 - SUPPORT PLATE

Install the rotor (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION) .

Fig 7: Cable To Support Plate

Courtesy of DAIMLERCHRYSLER CORP.

1 - WHEEL SPEED SENSOR WIRE

2 - CABLE

3 - BRAKE HOSE

4 - CALIPER SLIDE BOLTS

5 - BANJO BOLT

Install the caliper and the slide bolts (4) (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION) .
Install the wheel and tire assembly (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
