Section 19 (Mechanical Brake System - Base (Service Information)): Cables: Installation: Front

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

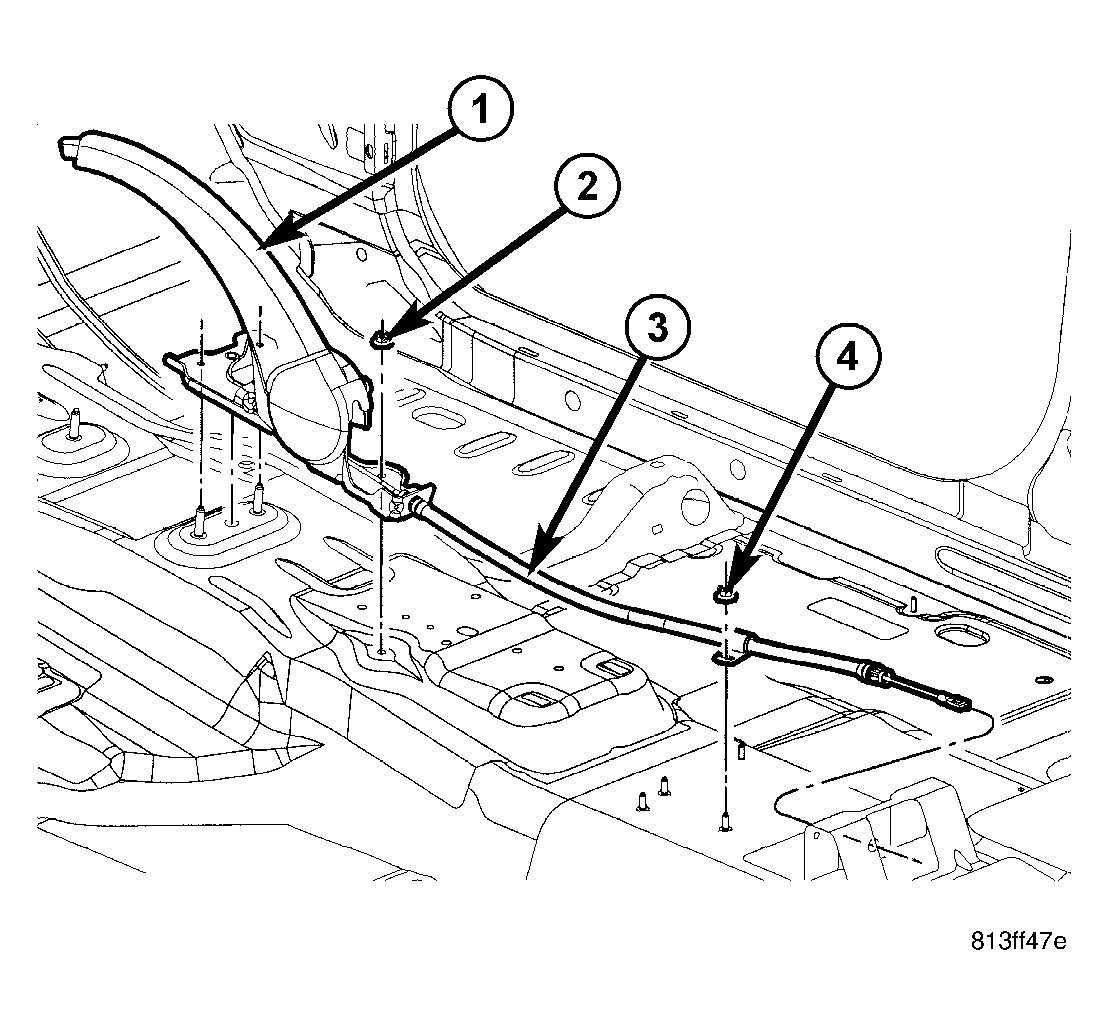

Fig 1: Park Brake Lever & Cable

Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE LEVER

2 - NUT

3 - CABLE

4 - NUT

Install the front cable (3) at the hand lever mounting bracket (1).
Install the front cable (3) at the hand lever (1).
Install the front cable at the rear floor bracket.
Install the 2 front cable routing clamps and the 3 nuts (2&4).

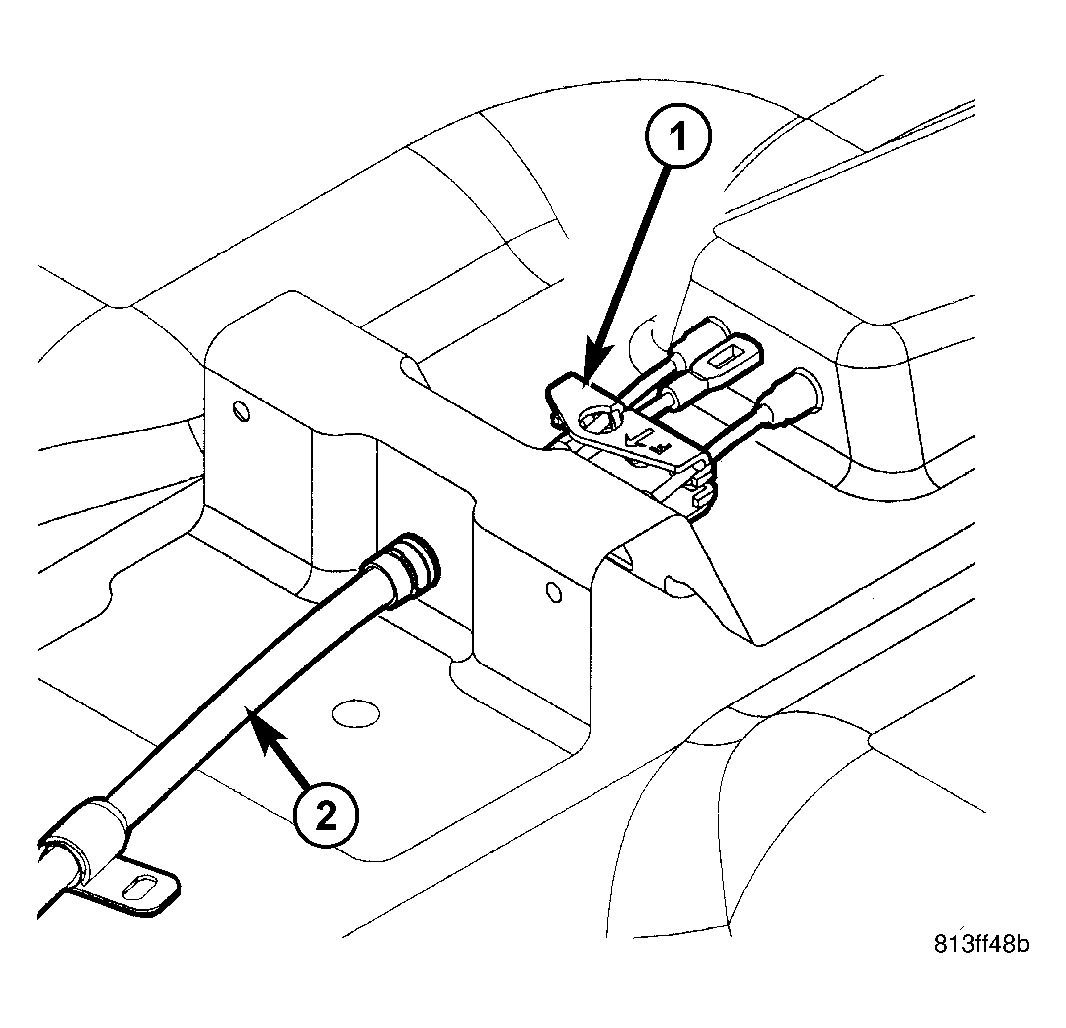

Fig 2: Cable Equalizer
Courtesy of DAIMLERCHRYSLER CORP.

1 - EQUALIZER

2 - CABLE

Install the front cable (2) at the equalizer (1).

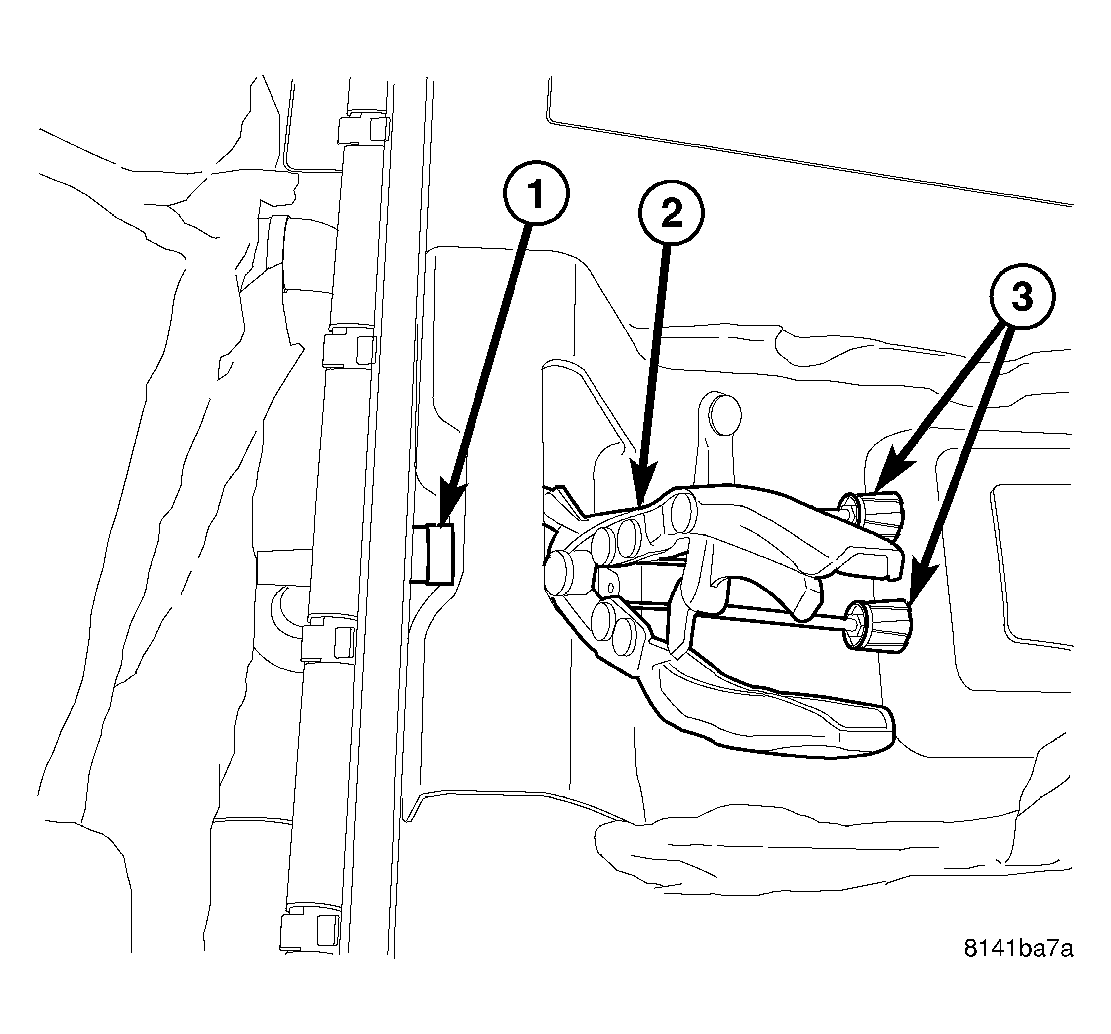

Fig 3: Lock Out Cables

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT CABLE

2 - LOCK OUT PLIERS

3 - REAR CABLES

Unlock the front park brake cable (1).
Install the rear carpet back in place.

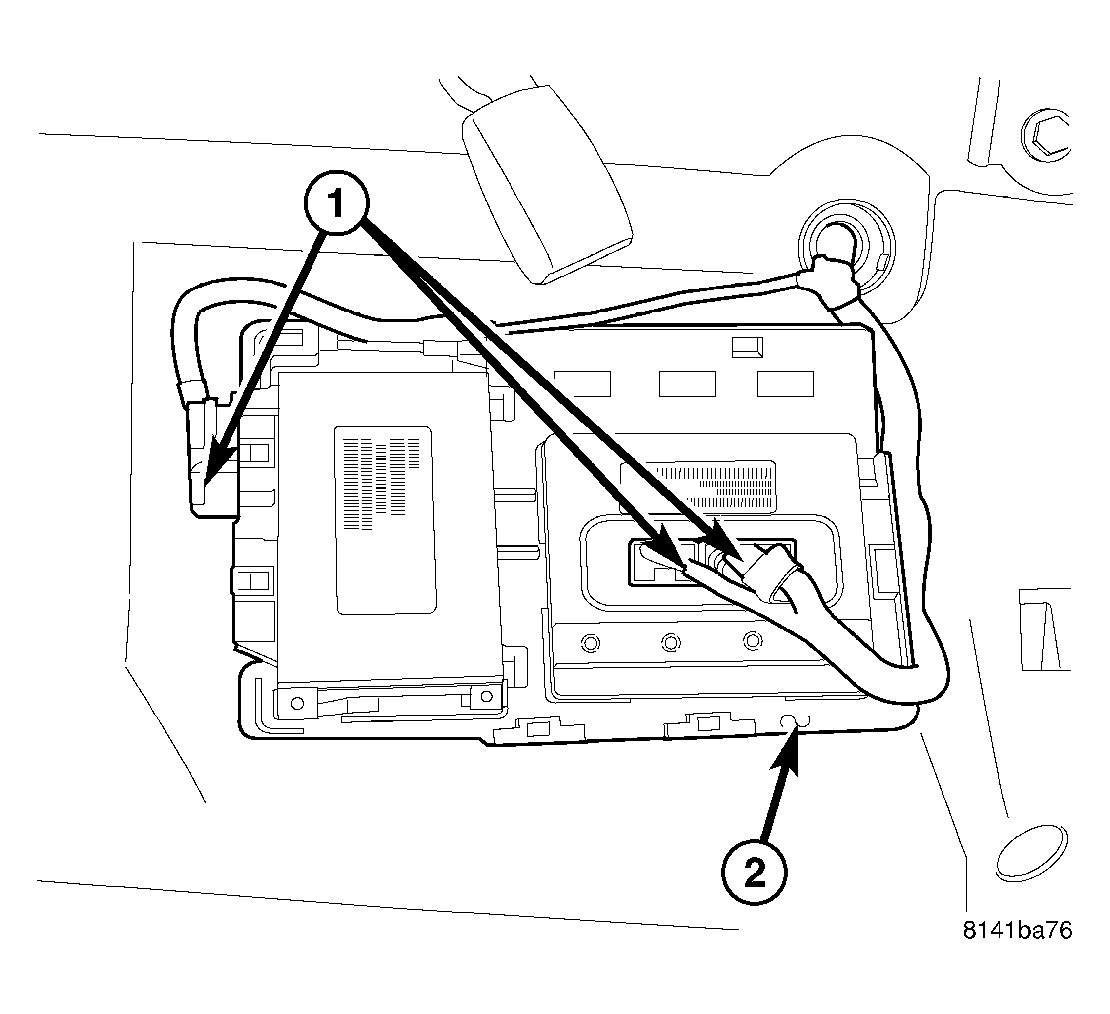

Fig 4: FDCM Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.

1 - ELECTRICAL CONNECTORS

2 - BRACKET
Install the module bracket (2) mounting nuts.
Reconnect the module electrical connectors (1).
Install the rear sill plates.

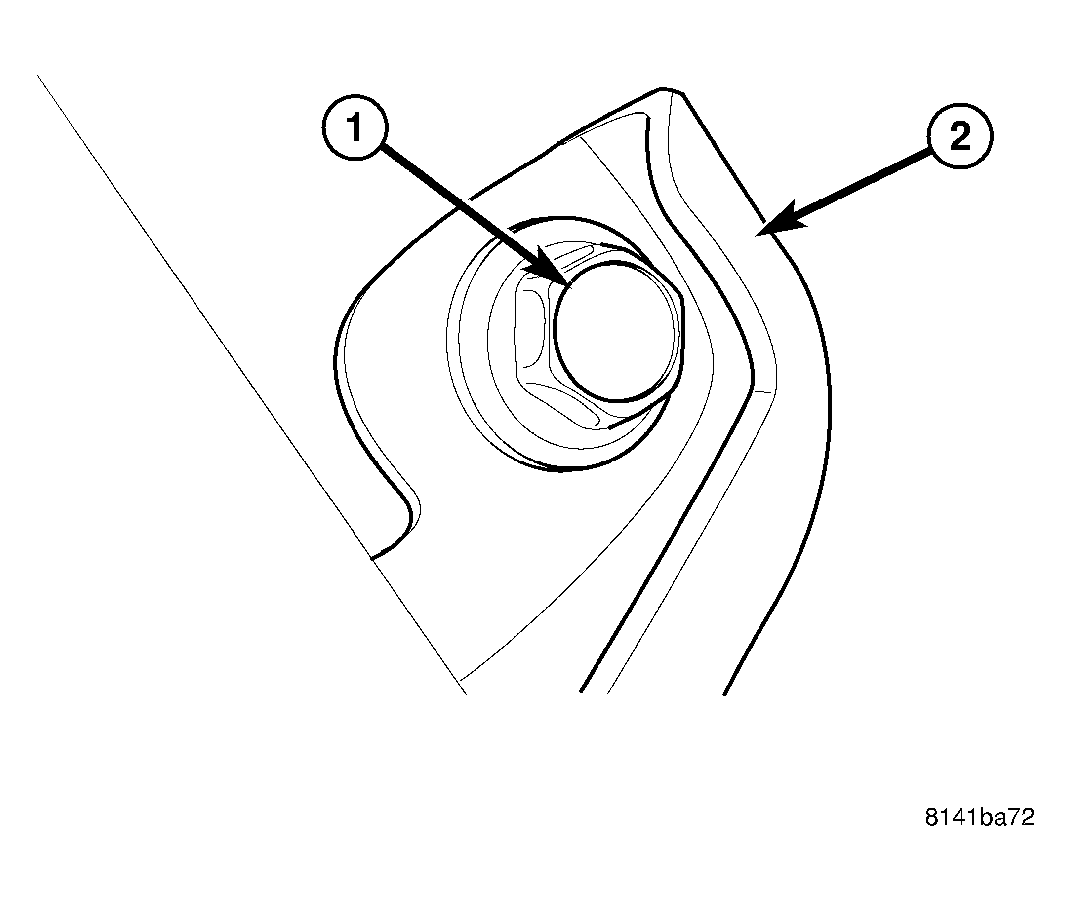

Fig 5: Seat Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT BOLT

2 - BRACKET
Install the drivers seat (Refer to BODY/SEATS/SEAT - INSTALLATION) .

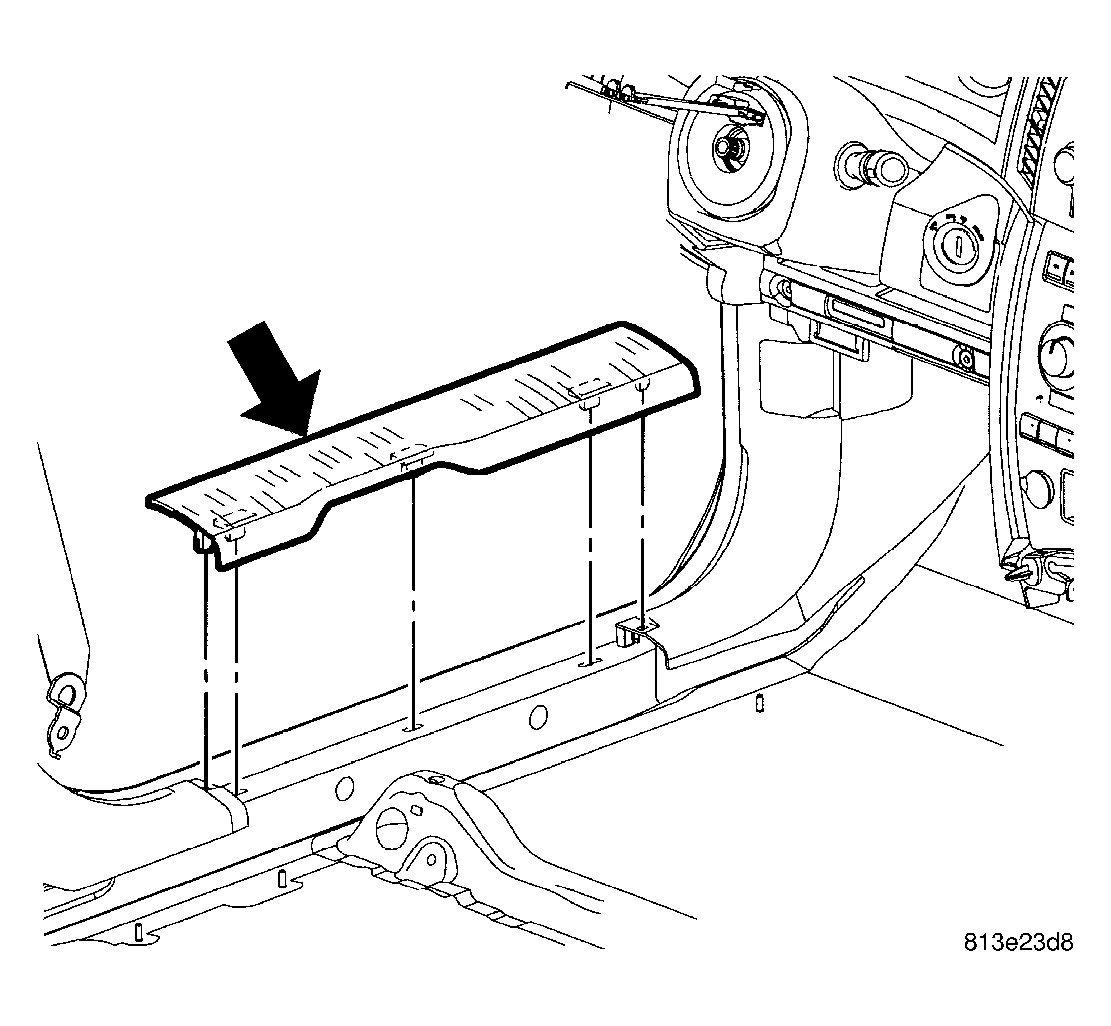

Fig 6: Front Door Sill
Courtesy of DAIMLERCHRYSLER CORP.
Install the left B-pillar trim panel (Refer to BODY/INTERIOR/B-PILLAR UPPER TRIM - INSTALLATION) .
Install the left sill plate.

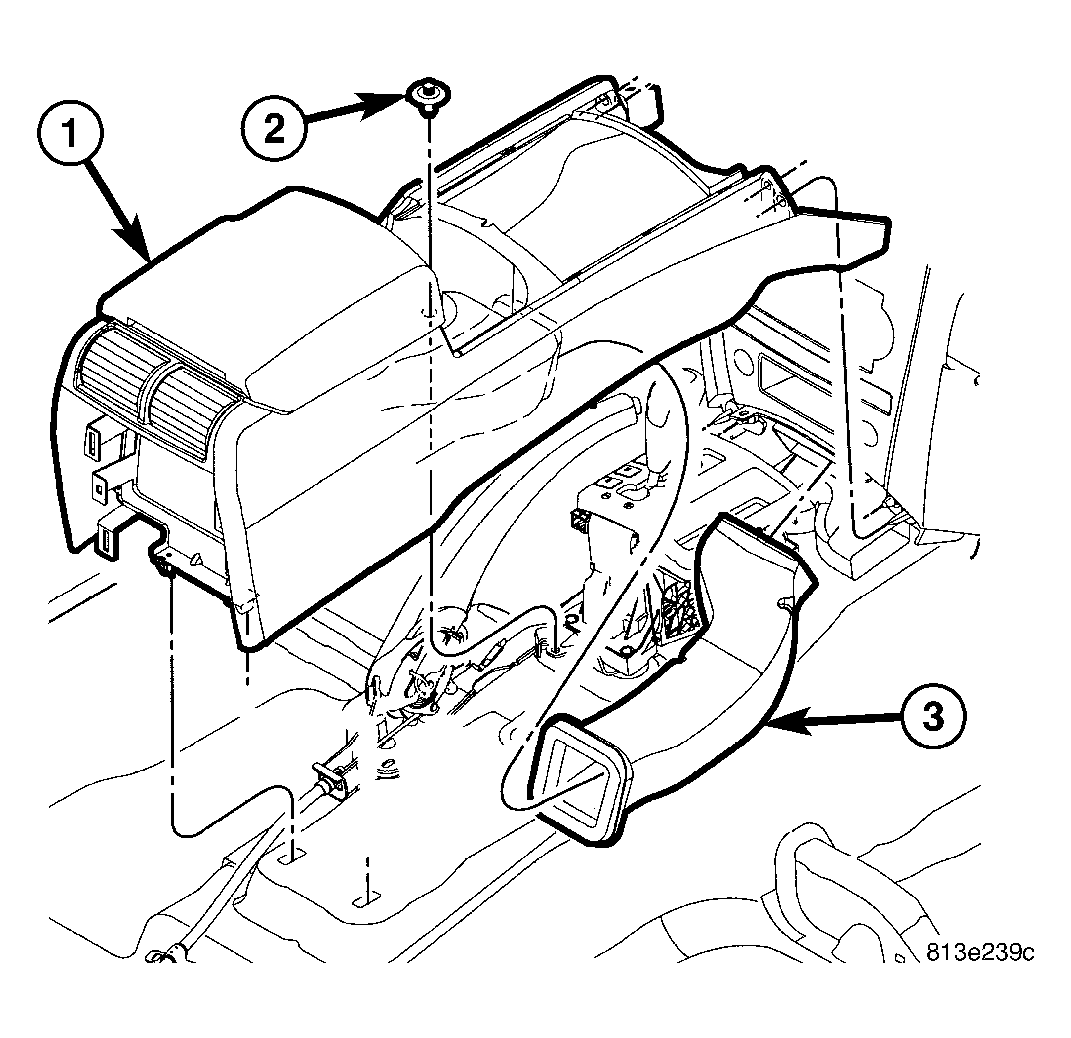

Fig 7: Center Console
Courtesy of DAIMLERCHRYSLER CORP.
Install the center console (1) (Refer to BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION) .

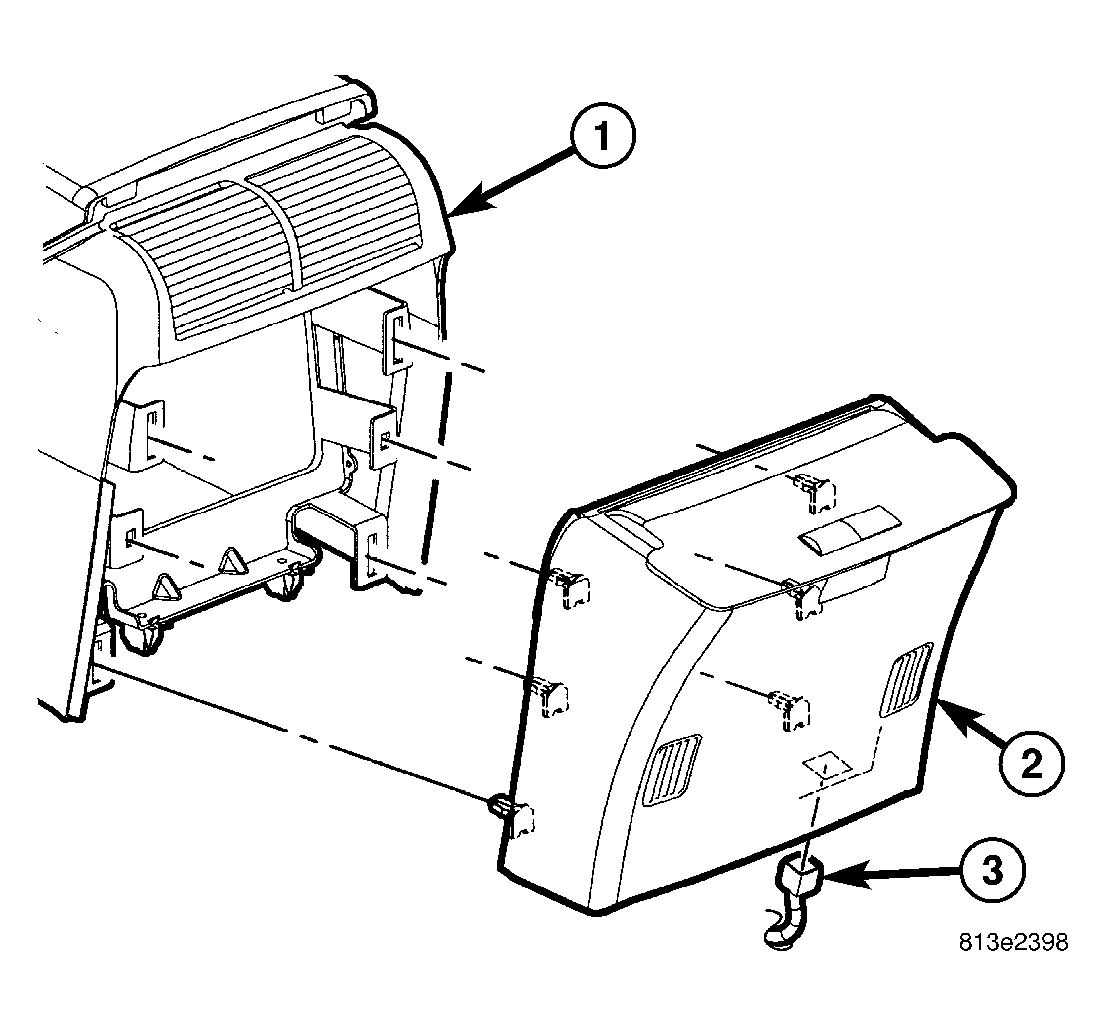

Fig 8: Console Rear Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install the console rear cover (2) or the DVD player (if equipped).

Fig 9: Seat Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT BOLT

2 - BRACKET
Install the rear seat bottom (Refer to BODY/SEATS/SEAT CUSHION - INSTALLATION) .
Reconnect the negative battery cable.
