Pump-Engine Oil: Installation

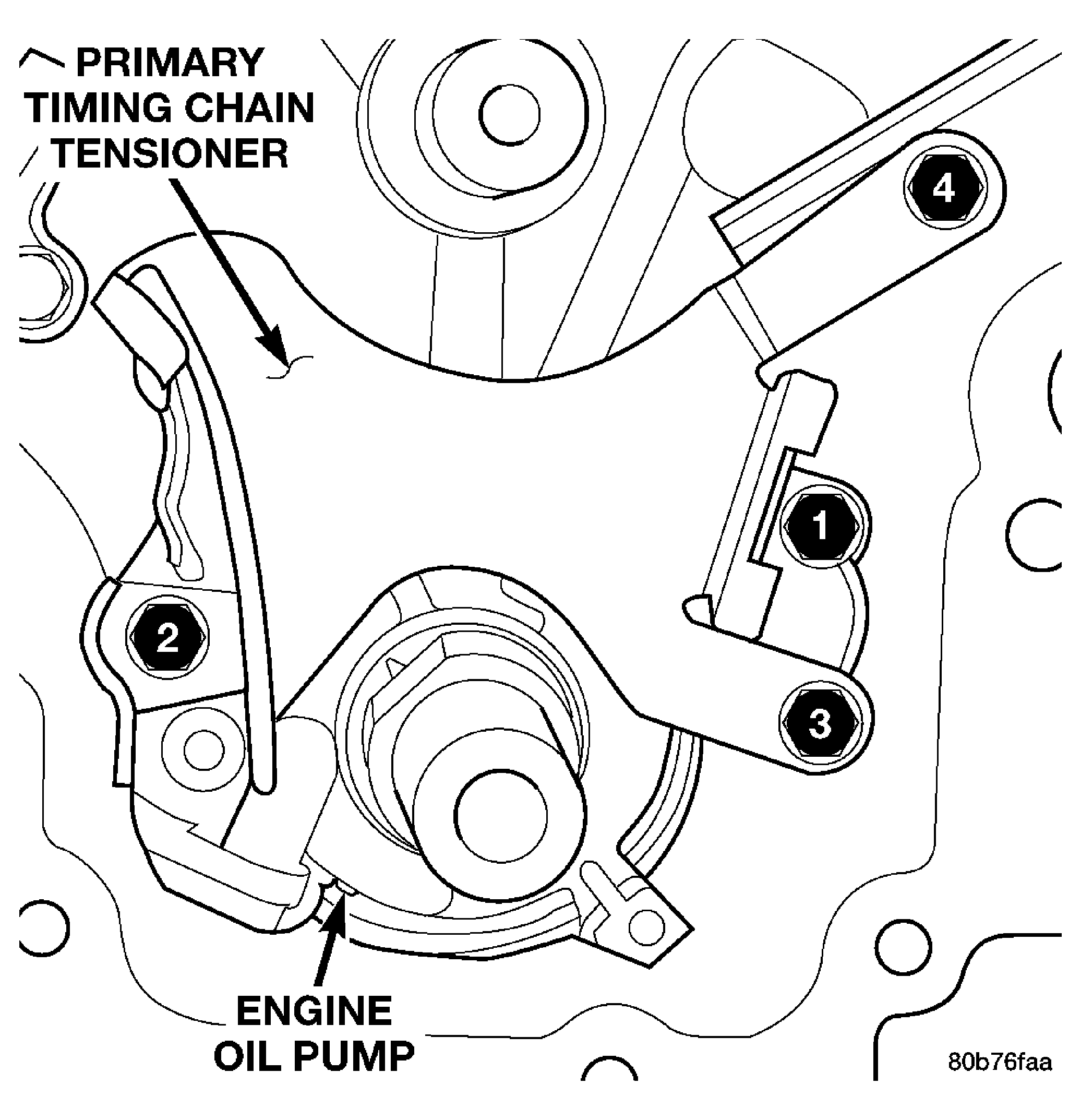

Fig 1: Oil Pump And Primary Timing Chain Tensioner Tightening Sequence
GC0011830Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the oil pump onto the crankshaft and install one oil pump retaining bolts.
  2. Position the primary timing chain tensioner and install three retaining bolts.
  3. Tighten the oil pump and primary timing chain tensioner retaining bolts to 28 N.m (250 in. lbs.) in the sequence shown.
  4. Install the secondary timing chain tensioners and timing chains (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTALLATION) .
  5. Install the timing chain cover (Refer to COVER - TIMING - INSTALLATION) .
  6. Install the pick-up tube and oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION)  .
