Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis >> Electrical >> Gauges >> Navigation System & Telecommunication System - Electrical Diagnostics >> DTC Troubleshooting >> B1435-Voice Recognition/Phone Switch Input Circuit Performance >> Circuit Schematic

Circuit Schematic

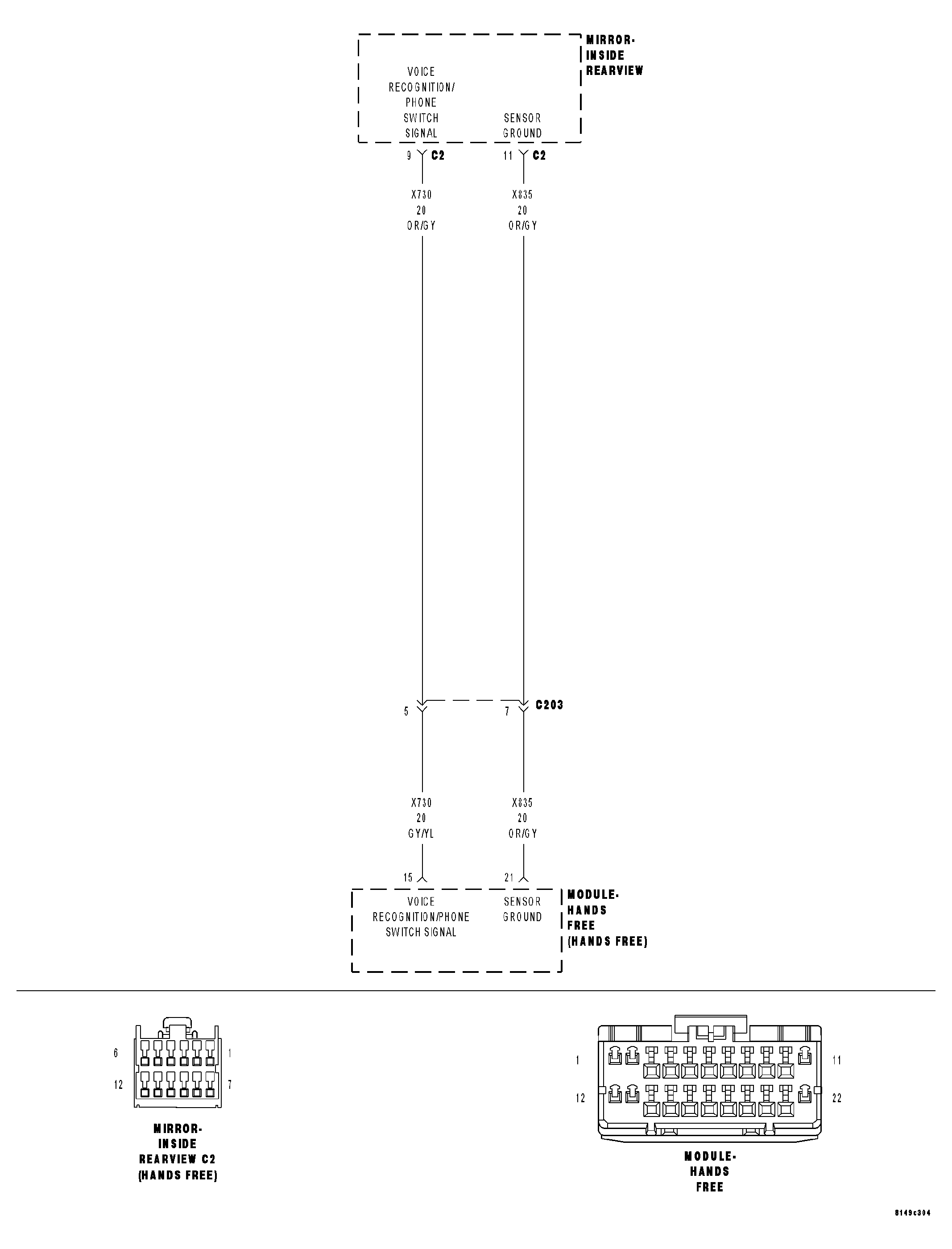

Fig 1: Voice Recognition/Phone Switch Circuit Schematic

GC0029267

Courtesy of DAIMLERCHRYSLER CORP.
