Circuit Schematic

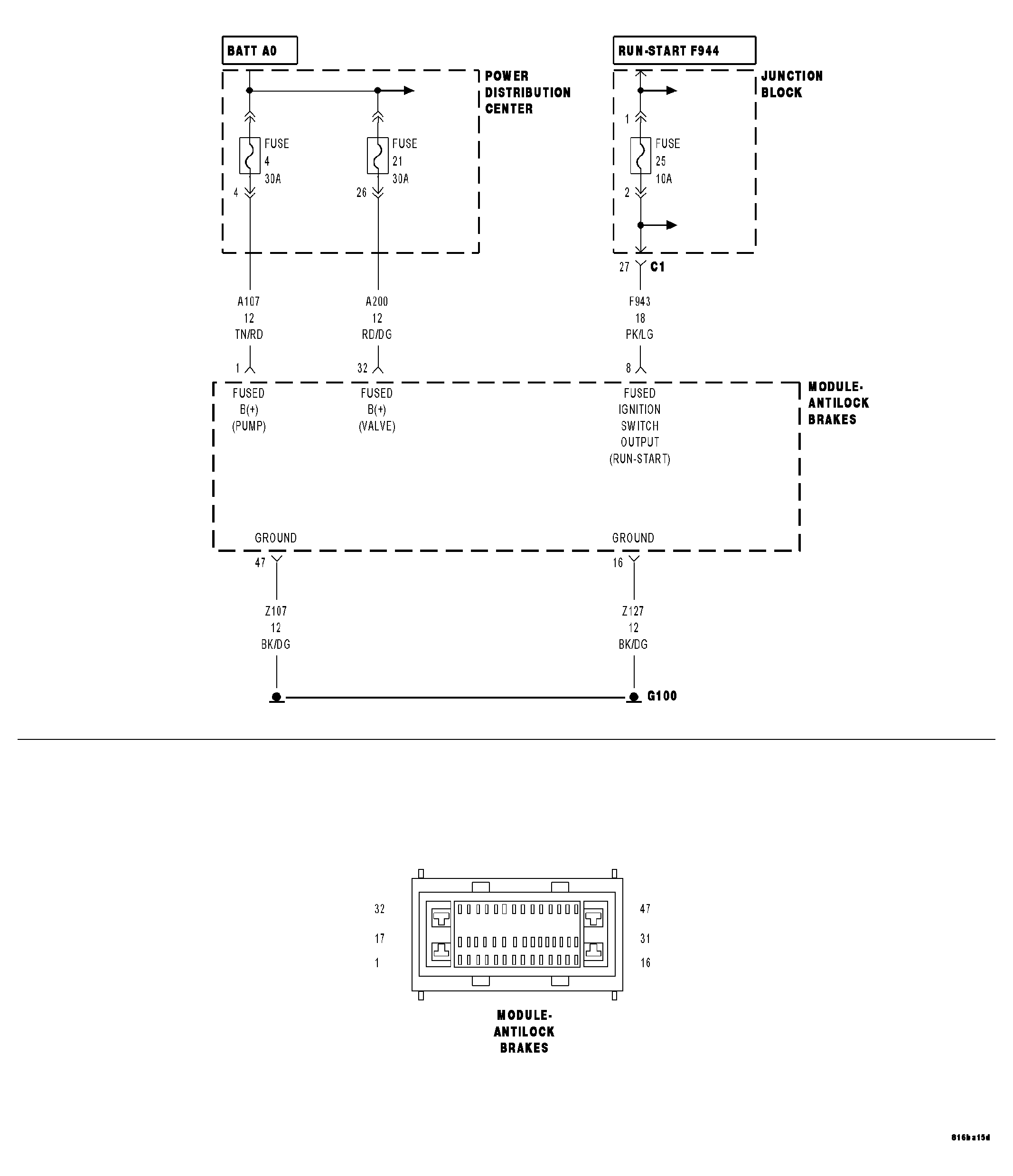

Fig 1: Anti-Lock Brake Module Power & Ground Circuits Schematic

GC0044718

Courtesy of DAIMLERCHRYSLER CORP.
