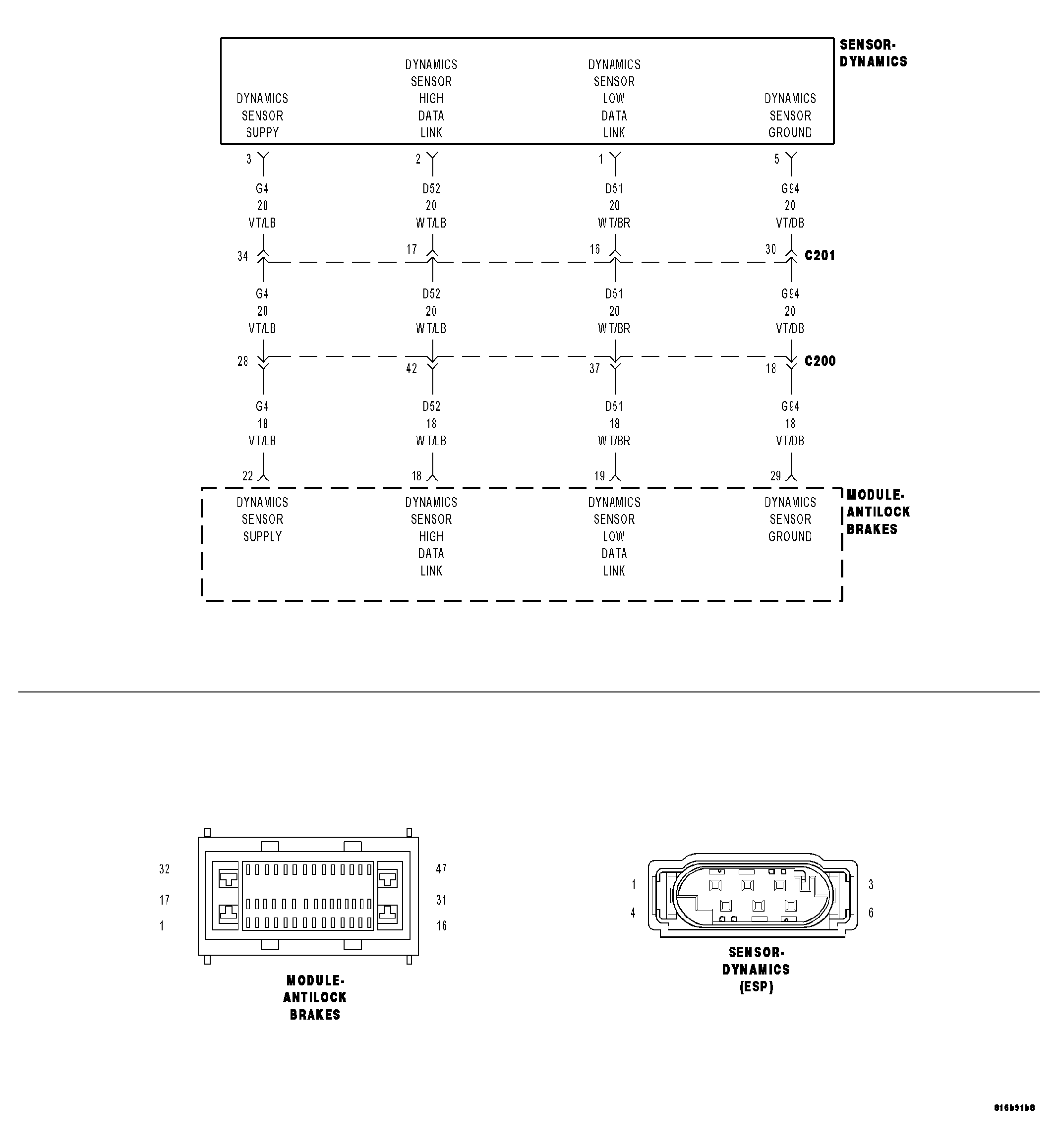

Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Electrical Diagnostics >> DTC Troubleshooting >> C123C-Dynamics Sensor Mounting/Installation Performance >> Circuit Schematic
