Circuit Schematic

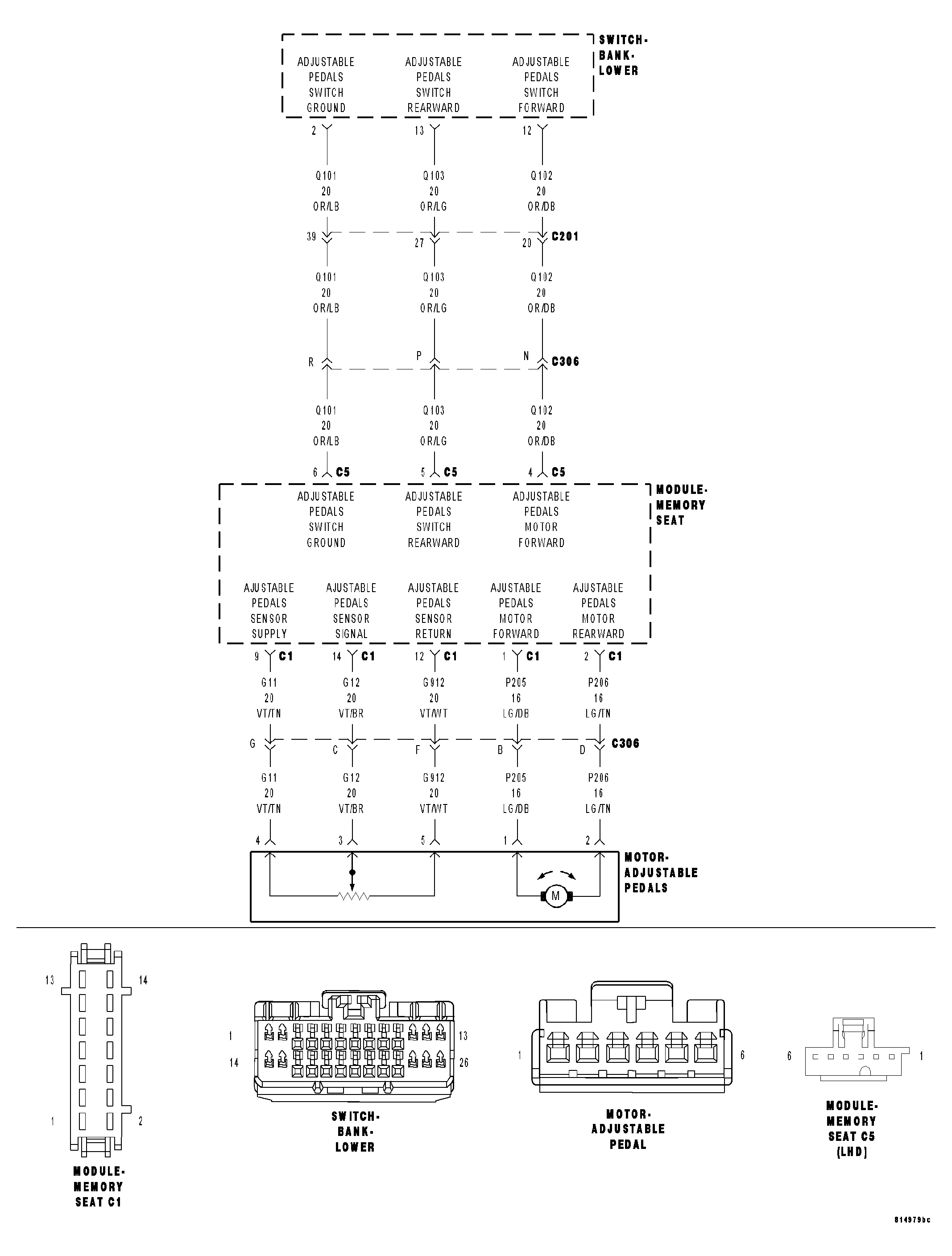

Fig 1: Adjustable Pedal Sensor Circuit Schematic

GC0026858

Courtesy of DAIMLERCHRYSLER CORP.
