Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> DTC Troubleshooting >> U0019-Can B Bus-DDM/PDM >> Circuit Schematic

Circuit Schematic

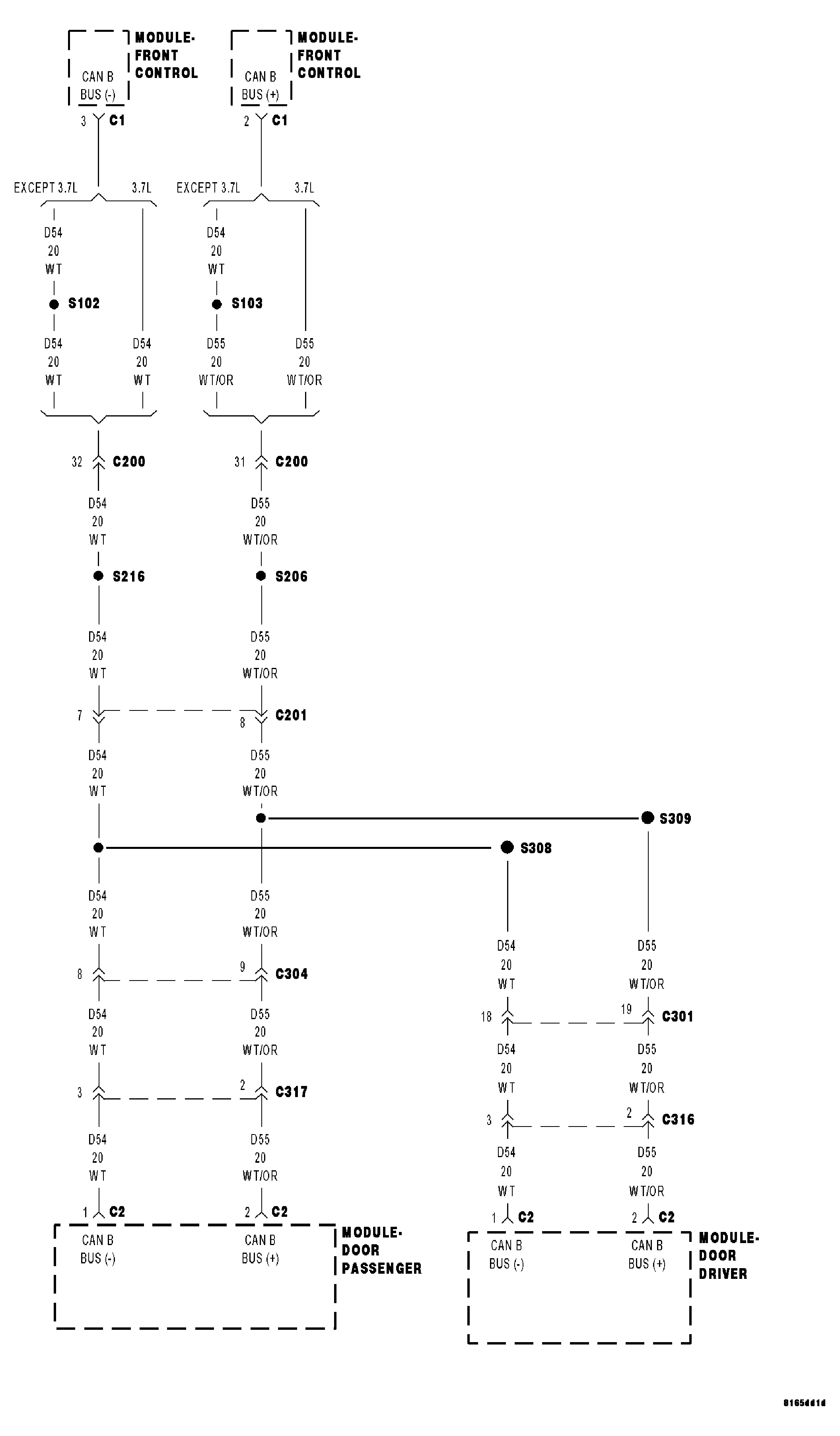

Fig 1: Driver Door Module/Passenger Door Module CAN B BUS Circuit Schematic

GC0045688

Courtesy of DAIMLERCHRYSLER CORP.
