Home >> Jeep >> 2006 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> DTC Troubleshooting >> B1912-Passenger Window Switch Circuit High-PDM >> Circuit Schematic

Circuit Schematic

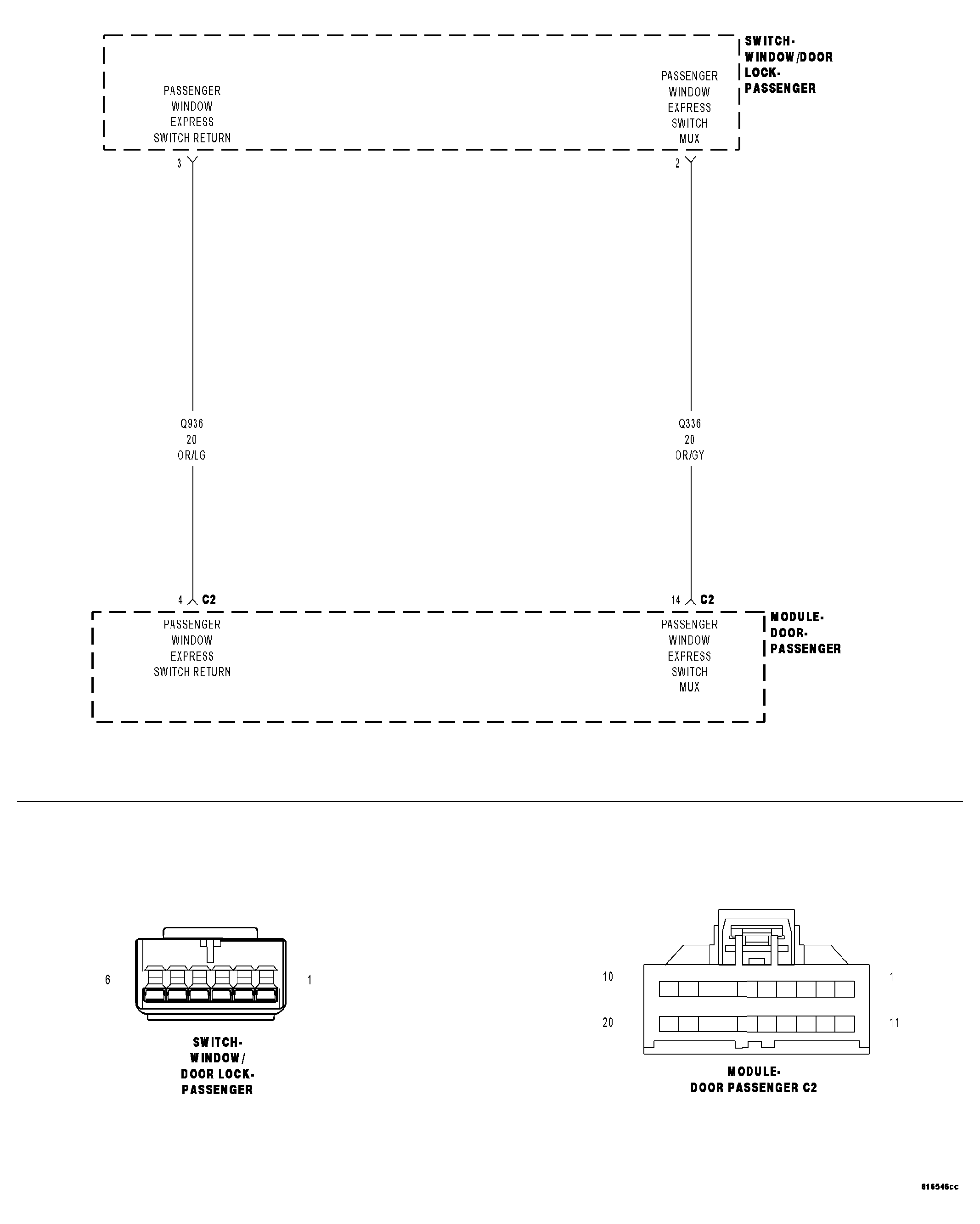

Fig 1: Passenger Window Switch Circuit Schematic

GC0045682

Courtesy of DAIMLERCHRYSLER CORP.
