Manifold Absolute Pressure Sensor - 3 Way

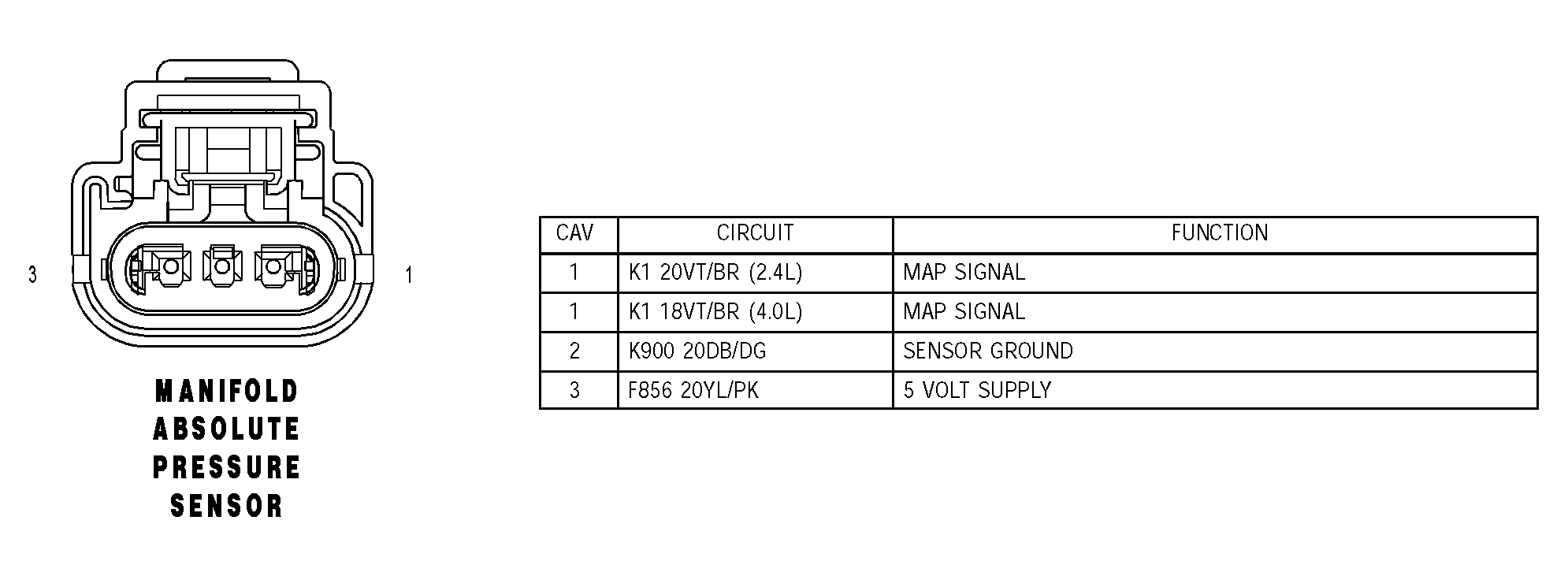

Fig 1: Identifying Manifold Absolute Pressure Sensor Connector Terminal - 3 Way

G04550613

Courtesy of DAIMLERCHRYSLER CORP.
