Instrument Cluster: Notes

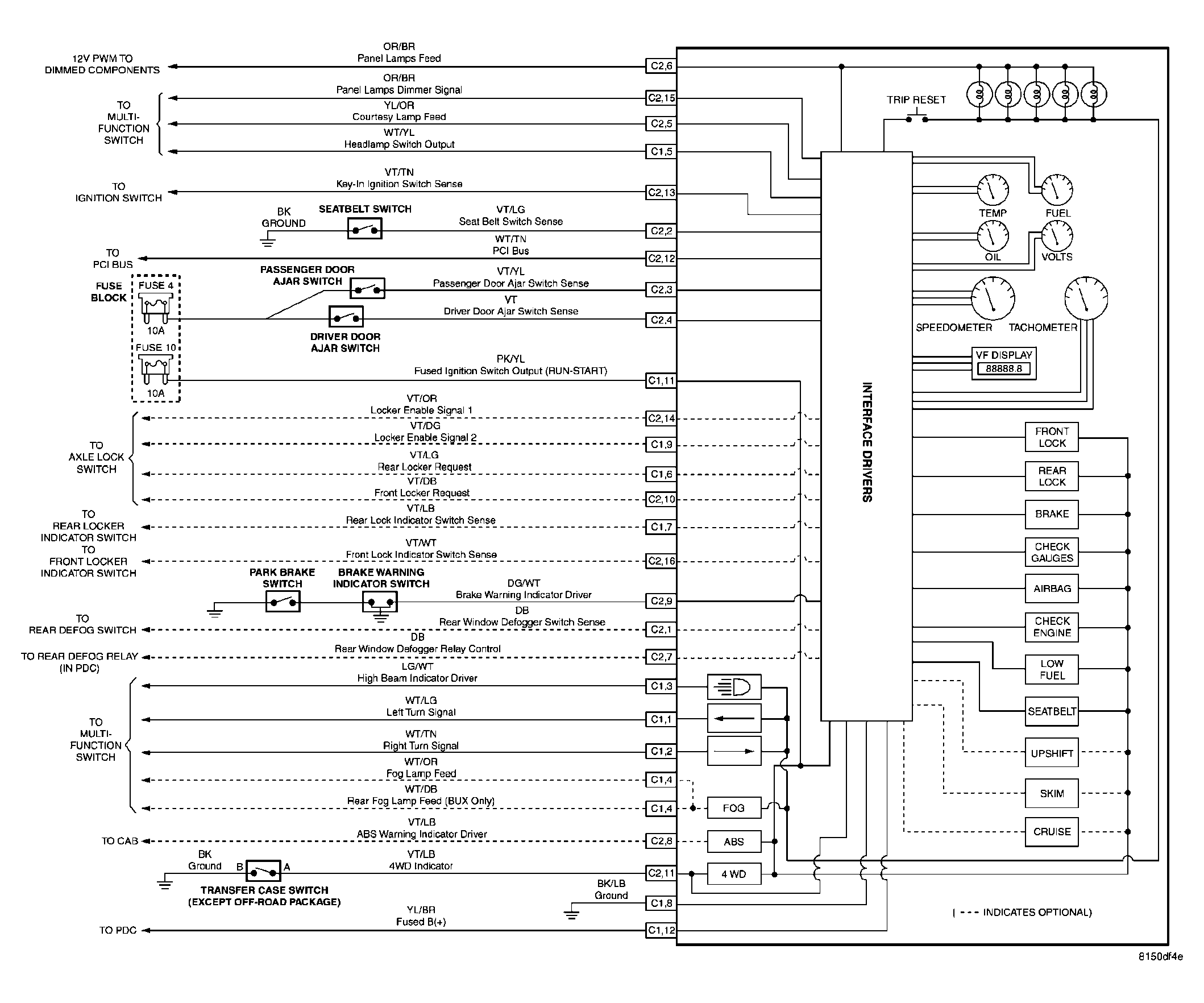

Fig 1: Instrument Cluster - Schematic Diagrams

G04550710

Courtesy of DAIMLERCHRYSLER CORP.
