Home >> Jeep >> 2005 >> Wrangler X, Automatic >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Connector PINOUTS >> Airbag Control Module - Yellow 22 Way

Airbag Control Module - Yellow 22 Way

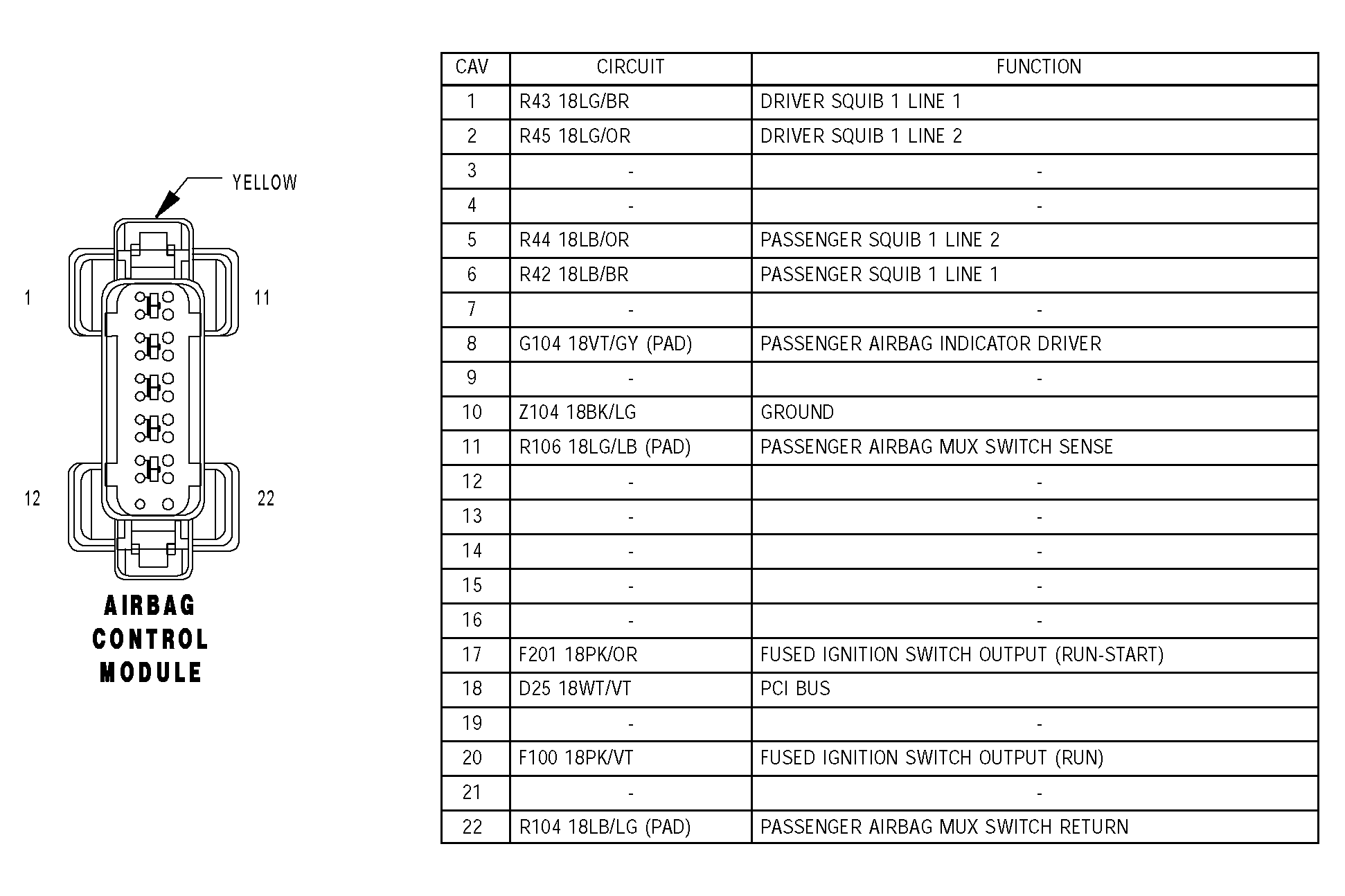

Fig 1: Identifying Airbag Control Module Connector Pinouts

G04550664

Courtesy of DAIMLERCHRYSLER CORP.
