Powertrain Control Module C2 - Black/Orange 38 Way

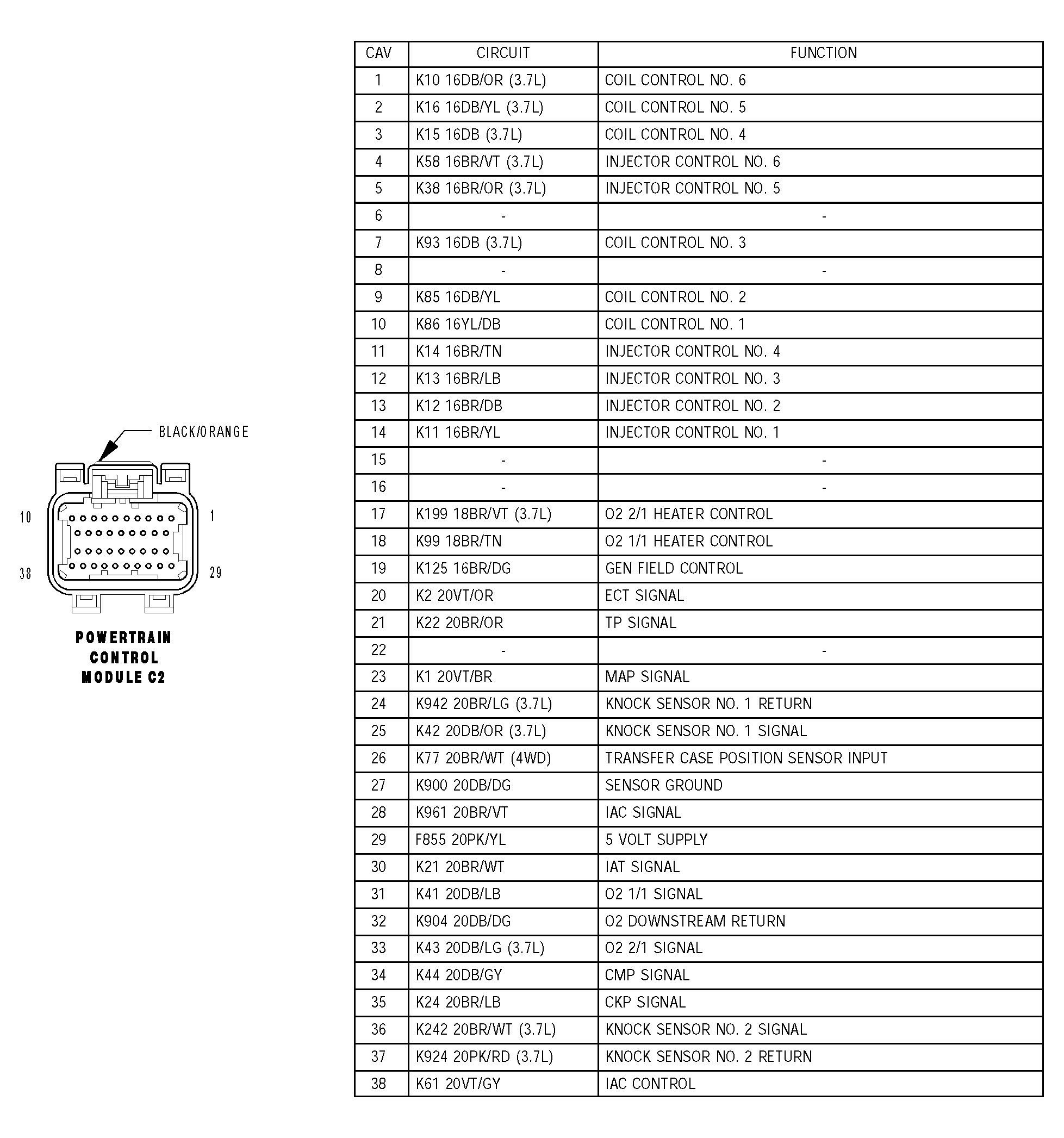

Fig 1: Identifying Powertrain Control Module C2 - Black/Orange 38 Way Pinouts

G04549997

Courtesy of DAIMLERCHRYSLER CORP.
