Power Distribution Center

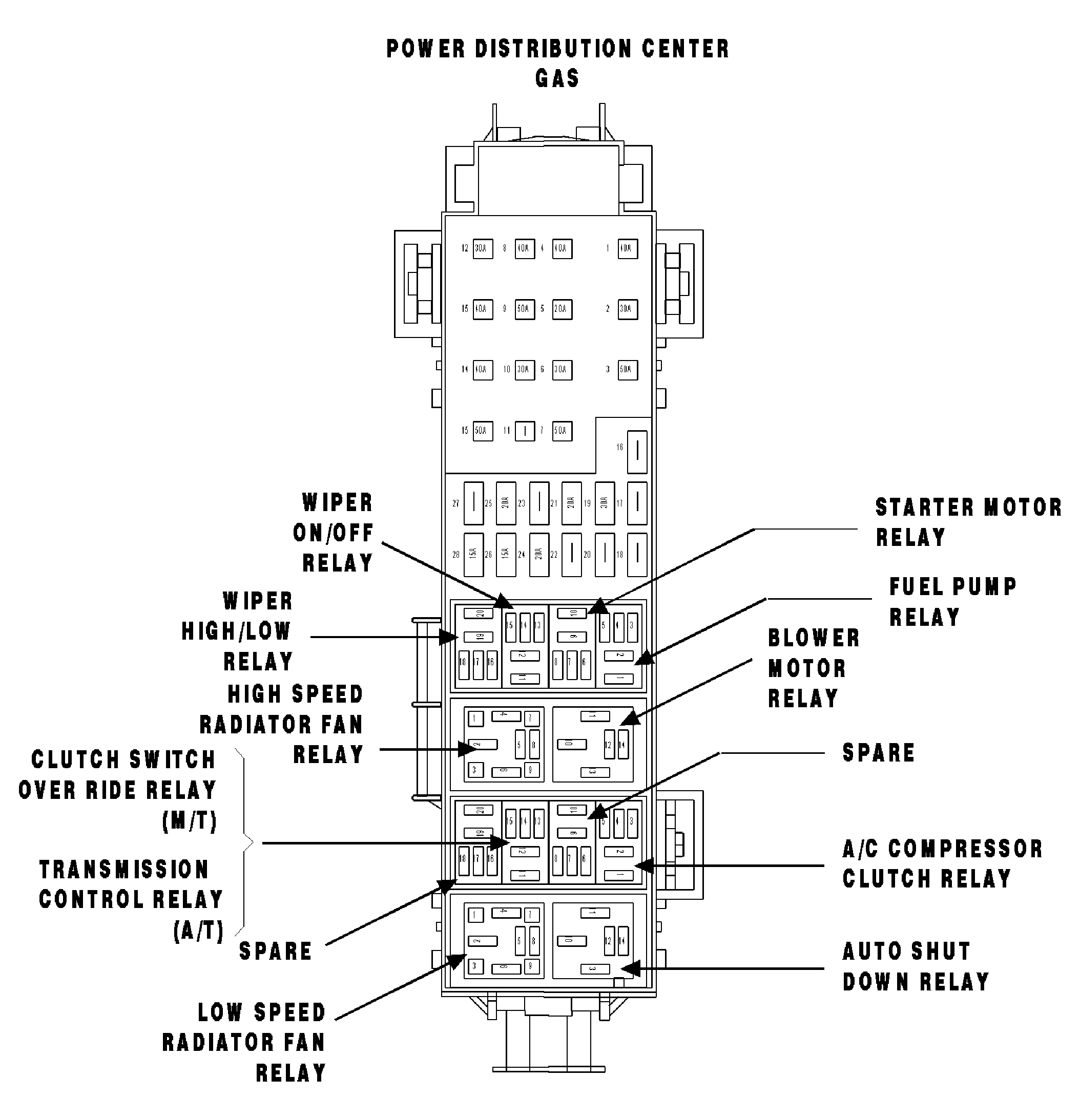

Fig 1: Identifying Relays
G04549992Courtesy of DAIMLERCHRYSLER CORP.

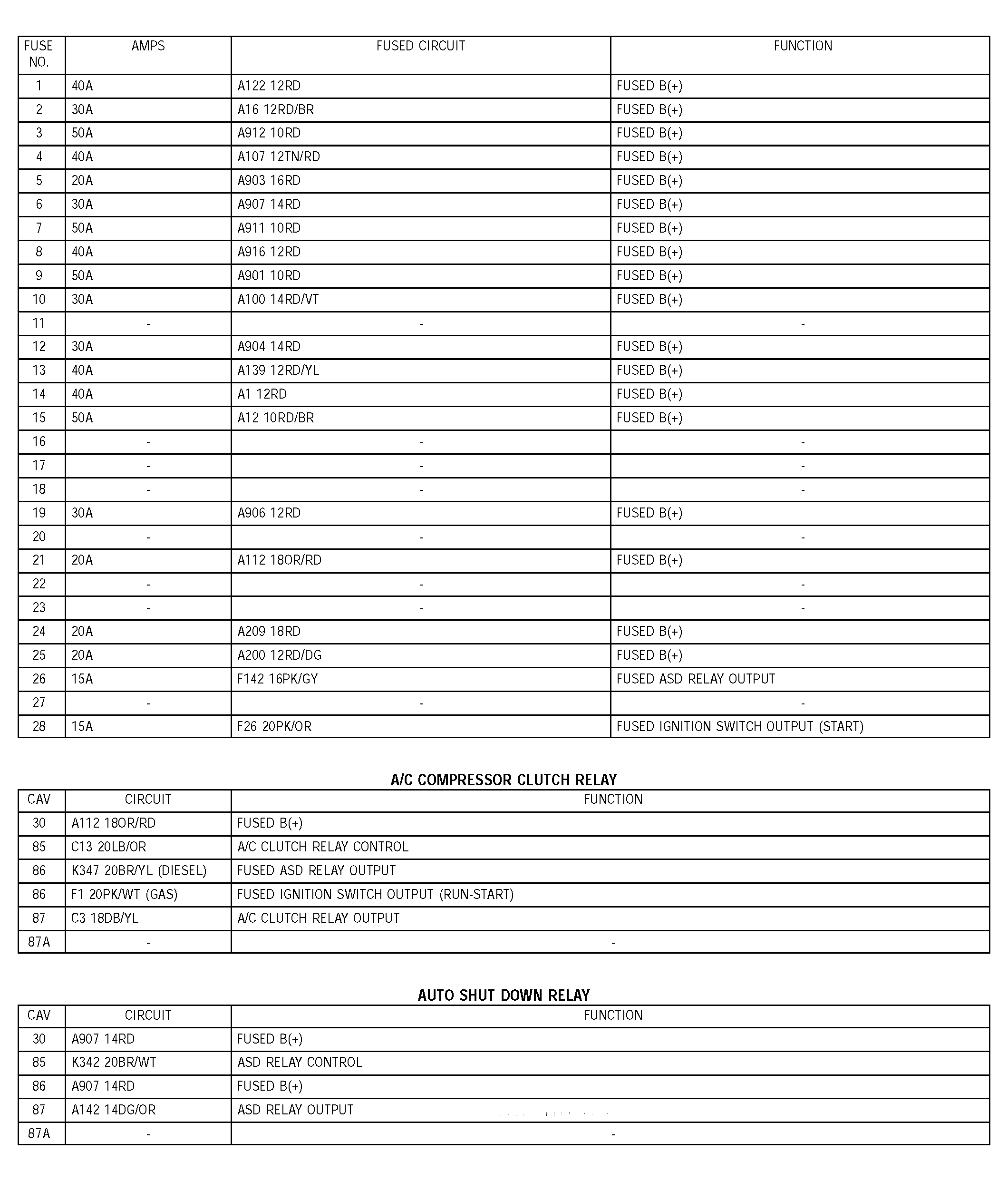

Fig 2: Fuses & Relays Reference Table
G04549993Courtesy of DAIMLERCHRYSLER CORP.

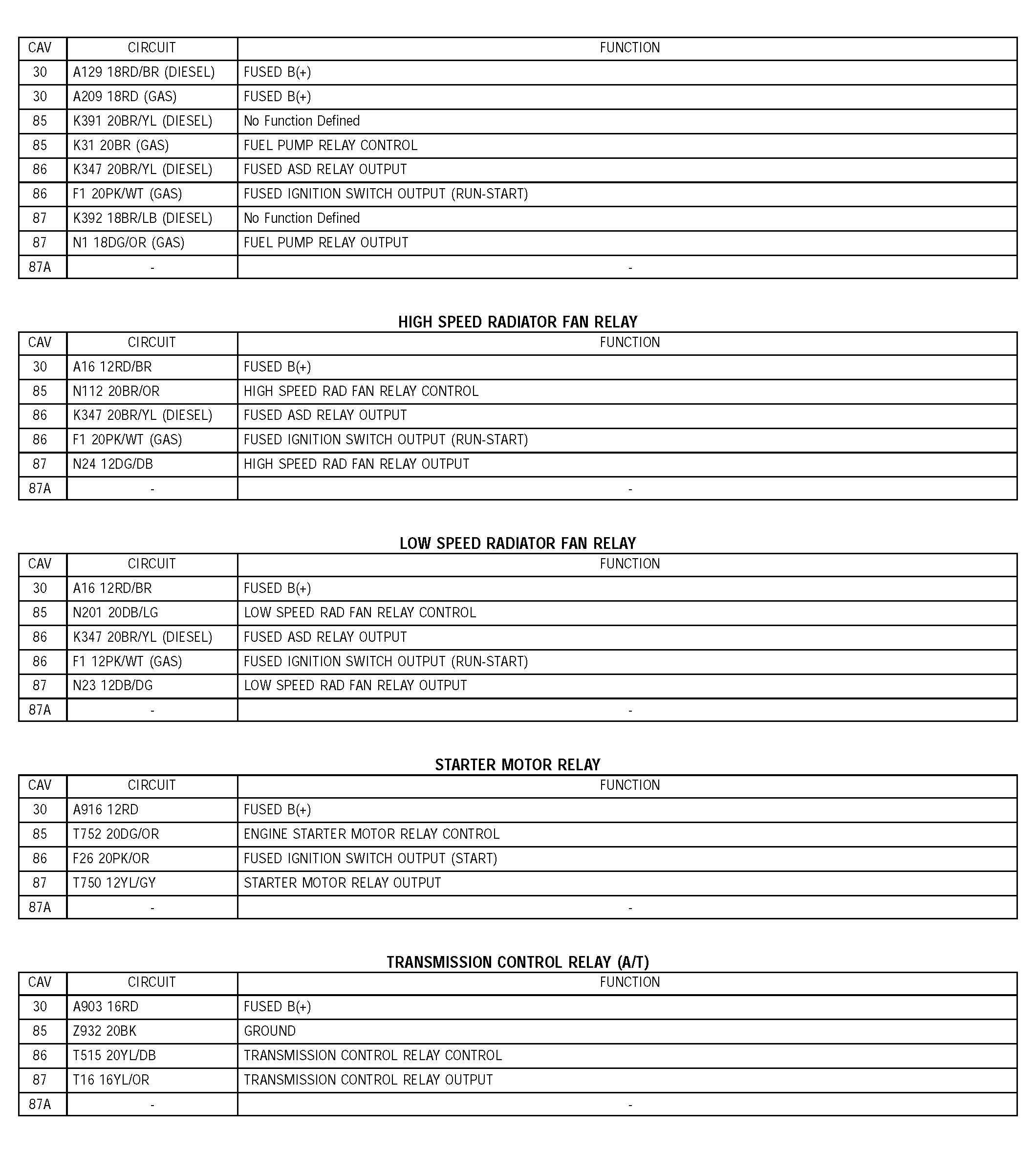

Fig 3: Relays Reference Table
G04549994Courtesy of DAIMLERCHRYSLER CORP.
