Fuel Pump Module - 4 Way

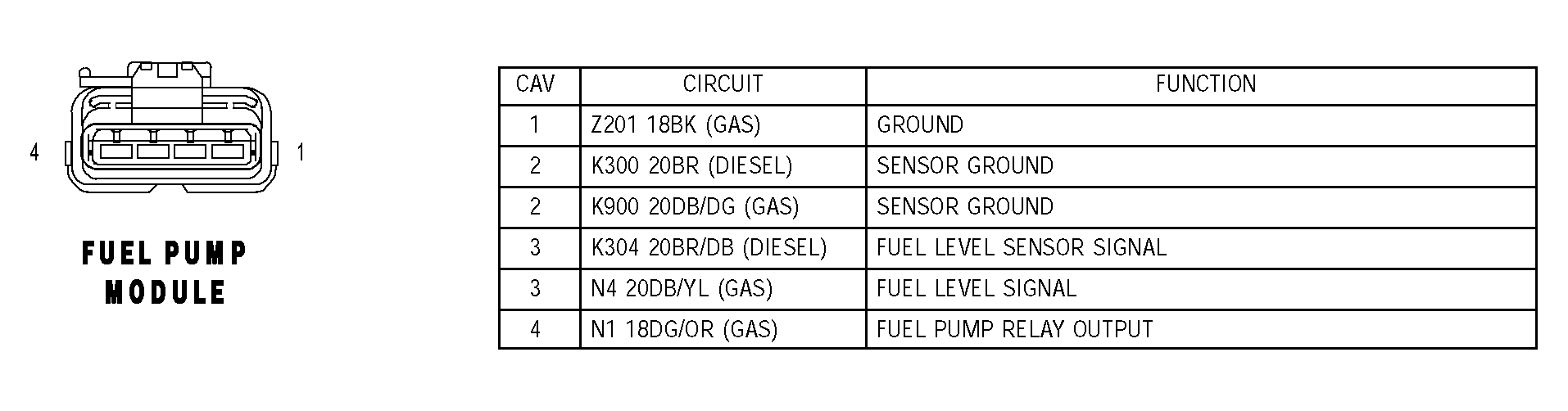

Fig 1: Identifying Fuel Pump Module - 4 Way Pinouts

G04549975

Courtesy of DAIMLERCHRYSLER CORP.
