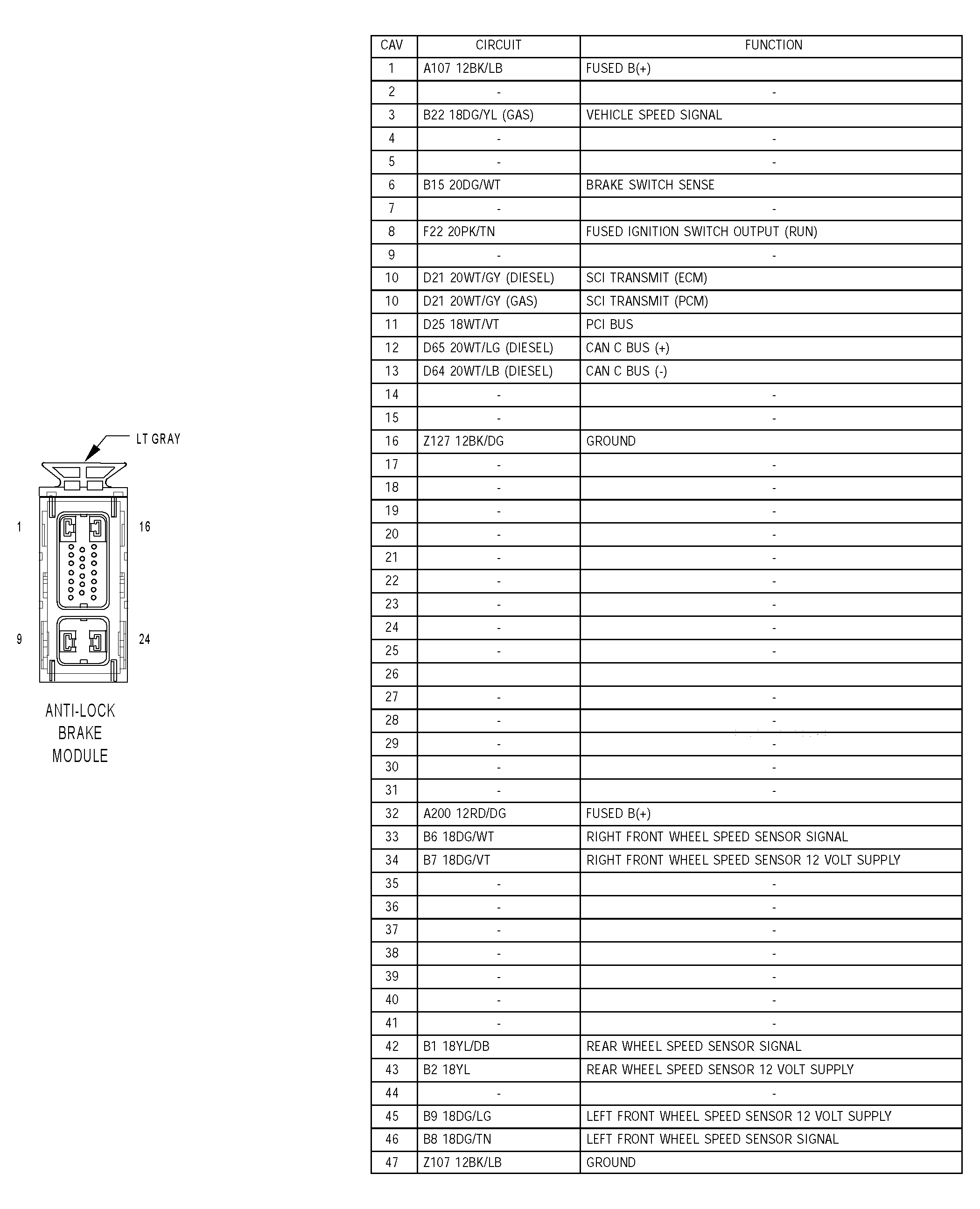

Home >> Jeep >> 2005 >> Liberty Renegade, 4WD, Part Time, Standard >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Connector PINOUTS >> Anti-Lock Brake Module - 47 Way
