Powertrain Control Module C1 - Black/Black 38 Way

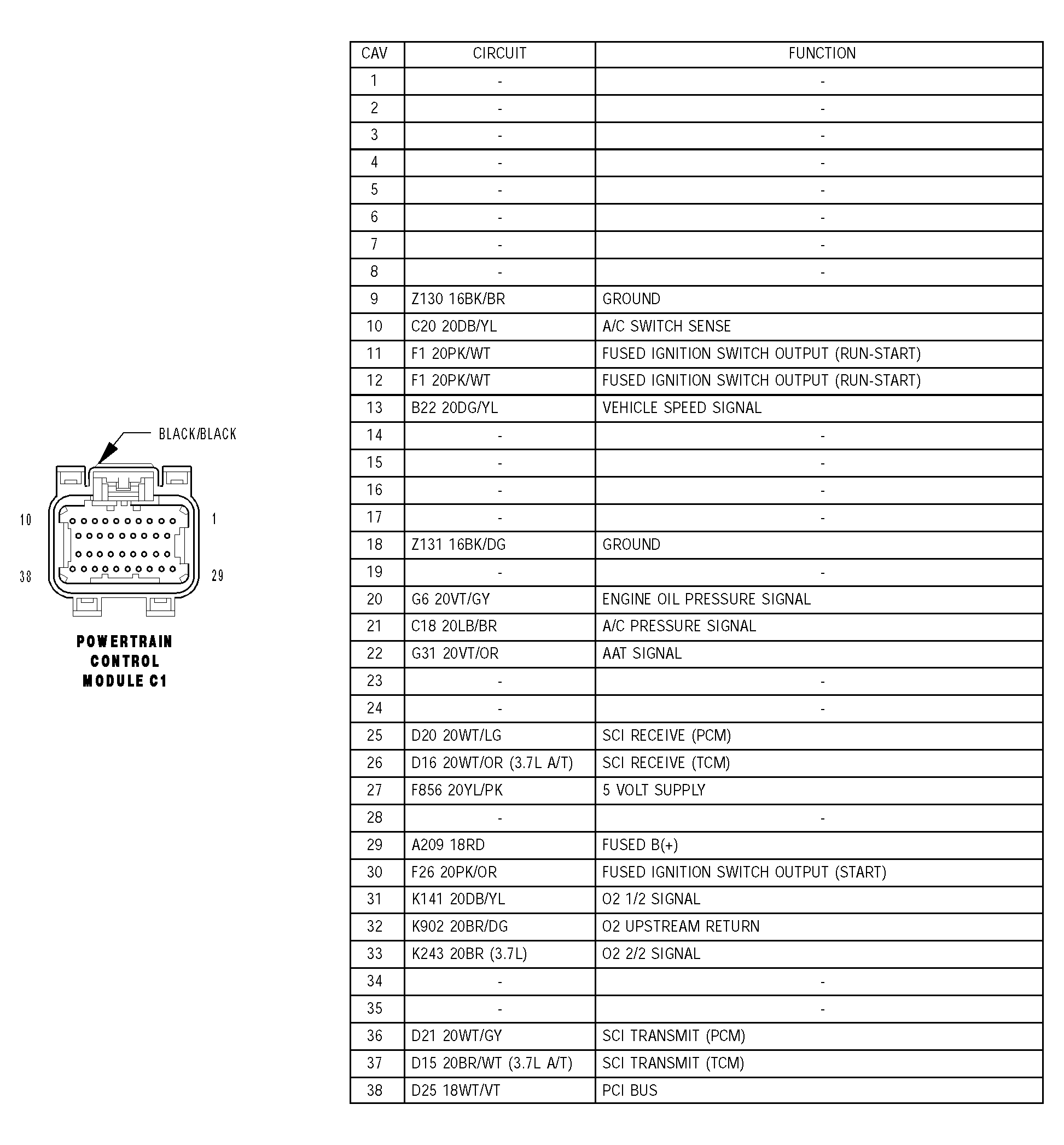

Fig 1: Identifying Powertrain Control Module C1 - Black/Black 38 Way Pinouts

G04549996

Courtesy of DAIMLERCHRYSLER CORP.
