2.8L Diesel Engine
WARNING:
DO NOT REMOVE OR LOOSEN THE COOLANT PRESSURE/VENT CAP, CYLINDER BLOCK DRAIN PLUGS, OR THE DRAINCOCK WHEN THE SYSTEM IS HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM THE COOLANT CAN OCCUR.
- Disconnect negative battery cable.
- Drain the cooling system. (Refer to COOLANT )

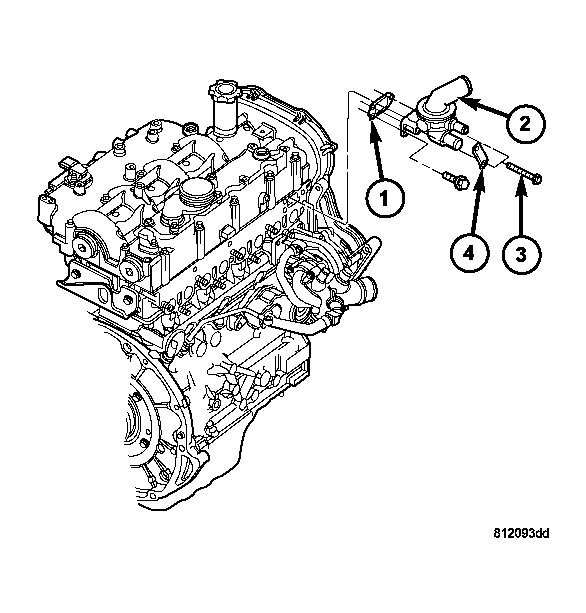

- Disconnect coolant temperature sensor electrical connector at thermostat housing. See Fig 1.
- Remove coolant temperature sensor from thermostat housing.
| 1 - GASKET |
| 2 - THERMOSTAT HOUSING |
| 3 - BOLT(S) |
| 4 - BRACKET |
