Transmission Solenoid/TRS, Input Speed Sensor, Output Speed Sensor Locations

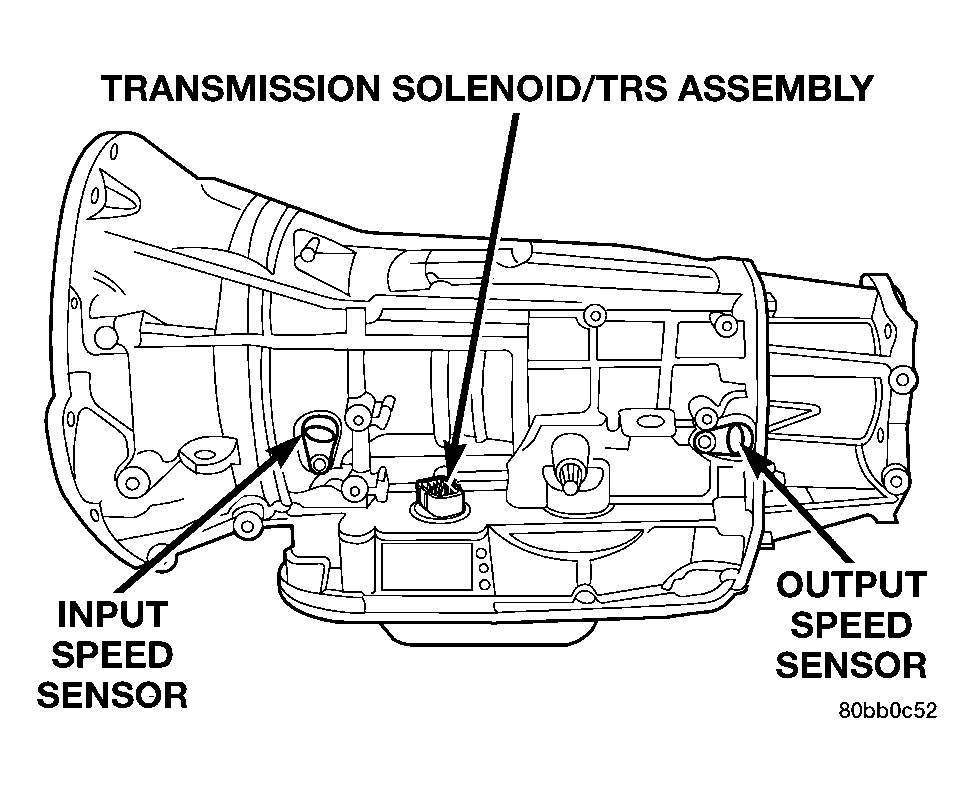

Fig 1: Identifying Transmission Sensor Component Locations
G04550272Courtesy of DAIMLERCHRYSLER CORP.
