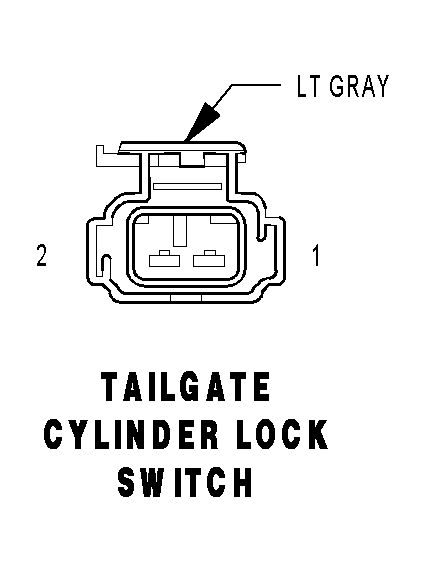

Tailgate Cylinder Lock Switch Connector End View
Tailgate Cylinder Lock Switch Connector End View
TAILGATE CYLINDER LOCK SWITCH - LT GRAY 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G910 20VT/BR
TAILGATE SWITCH GROUND
2
G71 20VT/OR
TAILGATE CYLINDER LOCK SWITCH MUX
