Right Side Impact Sensor 1 Connector End View

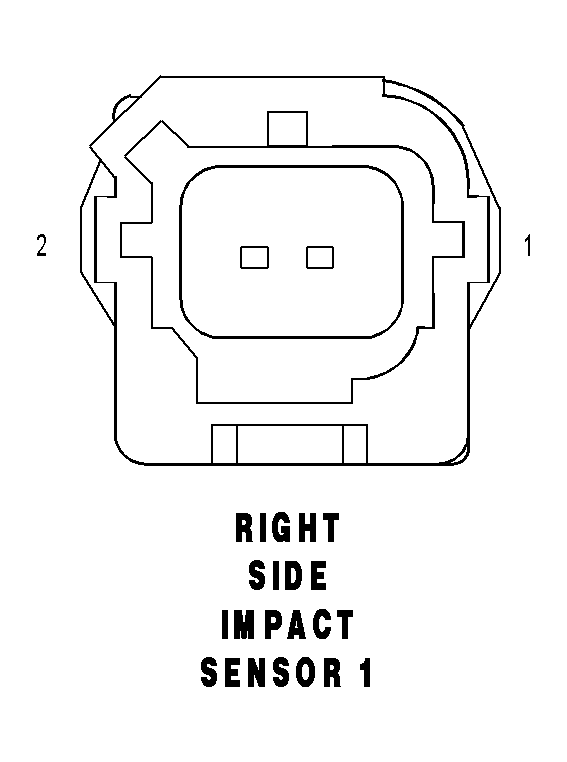

Right Side Impact Sensor 1 Connector End View
RIGHT SIDE IMPACT SENSOR 1 - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R16 20BR/LG
RIGHT SIDE IMPACT SENSOR 1 GROUND
2
R14 20TN/LG
RIGHT SIDE IMPACT SENSOR 1 SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
