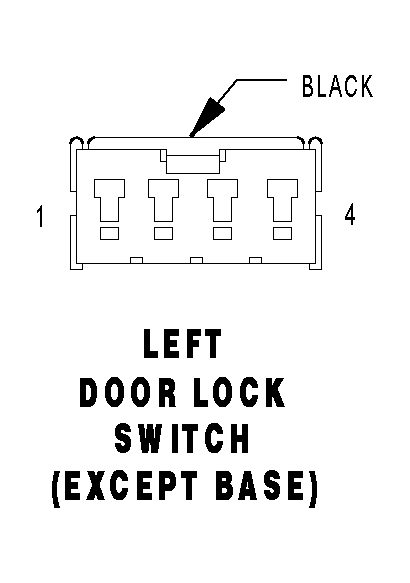

Left Door Lock Switch (Except Base) Connector End View
LEFT DOOR LOCK SWITCH (EXCEPT BASE) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P36 20TN/DB |
DOOR LOCK SWITCH MUX |
| 2 |
Z999 20BK |
GROUND |
| 3 |
F98 20PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 4 |
P37 20LG/TN |
DOOR LOCK SWITCH GROUND |
