Intake Air Temperature Sensor (Gas) Connector End View

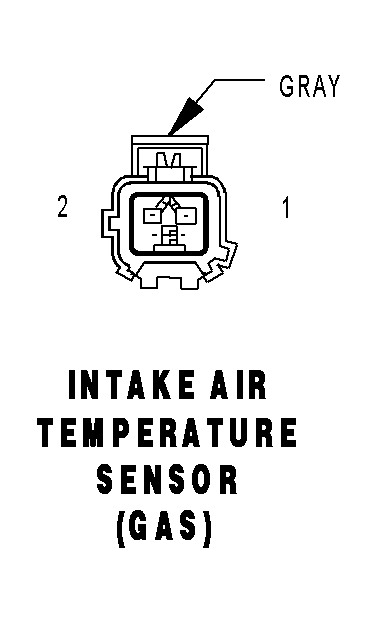

INTAKE AIR TEMPERATURE SENSOR (GAS) - GRAY 2 WAY

GCKJ580177Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K900 20DB/DG SENSOR GROUND
2 K21 20BR/WT IAT SIGNAL
