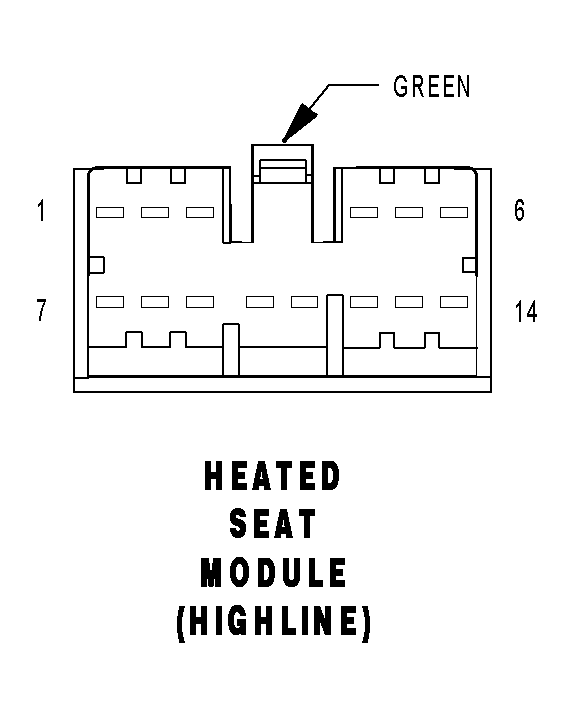

Heated Seat Module (Highline) Connector End View
HEATED SEAT MODULE (HIGHLINE) - GREEN 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P133 20TN/DG | LEFT SEAT HEATER SWITCH MUX |
| 2 | P86 20PK/BK | HEATED SEAT TEMPERATURE SENSOR SIGNAL |
| 3 | F98 16RD/WT | PASSENGER HEATED SEAT FEED |
| 4 | A902 16RD/WT | FUSED B(+) |
| 5 | F99 16RD/WT | DRIVER HEATED SEAT FEED |
| 6 | A902 16RD/WT | FUSED B(+) |
| 7 | P142 20TN/DB | PASSENGER HEATED SEAT TEMPERATURE SENSOR GROUND |
| 8 | P141 20TN/LB | DRIVER HEATED SEAT TEMPERATURE SENSOR GROUND |
| 9 | P134 20TN/LG | RIGHT SEAT HEATER SWITCH MUX |
| 10 | P138 20VT/LG | RIGHT SEAT LOW HEAT LED DRIVER |
| 11 | P140 20VT/BK | RIGHT SEAT HIGH HEAT LED DRIVER |
| 12 | P137 20VT/DG | LEFT SEAT LOW HEAT LED DRIVER |
| 13 | Z849 20BK/WT | GROUND |
| 14 | P139 20VT/WT | LEFT SEAT HIGH HEAT LED DRIVER |
