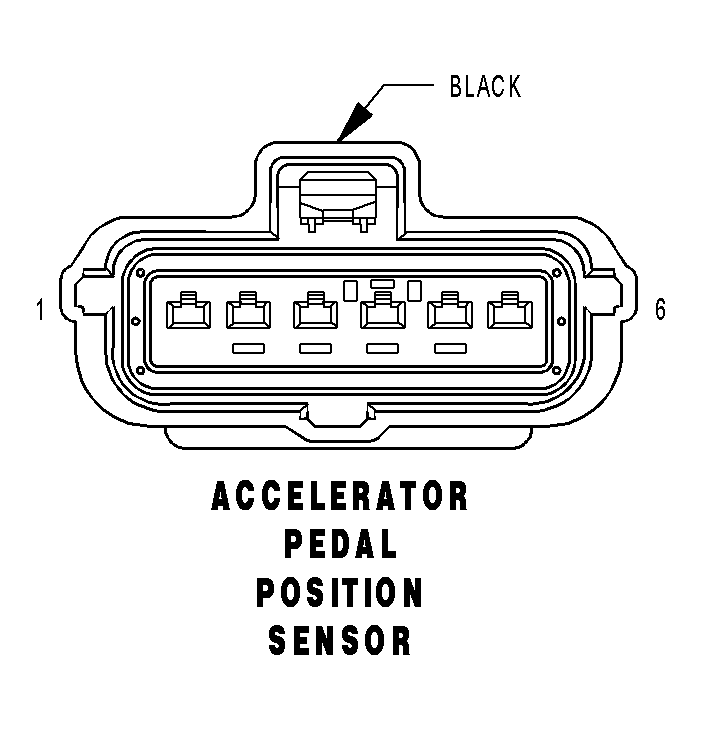

Accelerator Pedal Position Sensor (Diesel) Connector End View
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K854 20VT/BR | ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY 2 |
| 2 | K29 20 WT/BR | ACCELERATOR PEDAL POSITION SENSOR SIGNAL 2 |
| 3 | K400 20BR/VT | ACCELERATOR PEDAL POSITION SENSOR GROUND 2 |
| 4 | K167 20BR/YL | ACCELERATOR PEDAL POSITION SENSOR GROUND 1 |
| 5 | K23 20BR/WT | ACCELERATOR PEDAL POSITION SENSOR SIGNAL 1 |
| 6 | K852 20BR/VT | ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY 1 |
