A/C Low Pressure Switch Connector End View

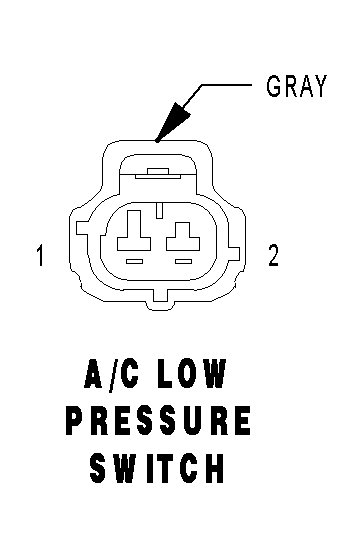

A/C LOW PRESSURE SWITCH - GRAY 2 WAY

GCKJ580003Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C20 18DB/YL A/C SWITCH SENSE
2 Z937 20BK (LHD) GROUND
2 Z932 18BK (RHD) GROUND
