Transmission Control Module (2.8L) - Black 60 Way

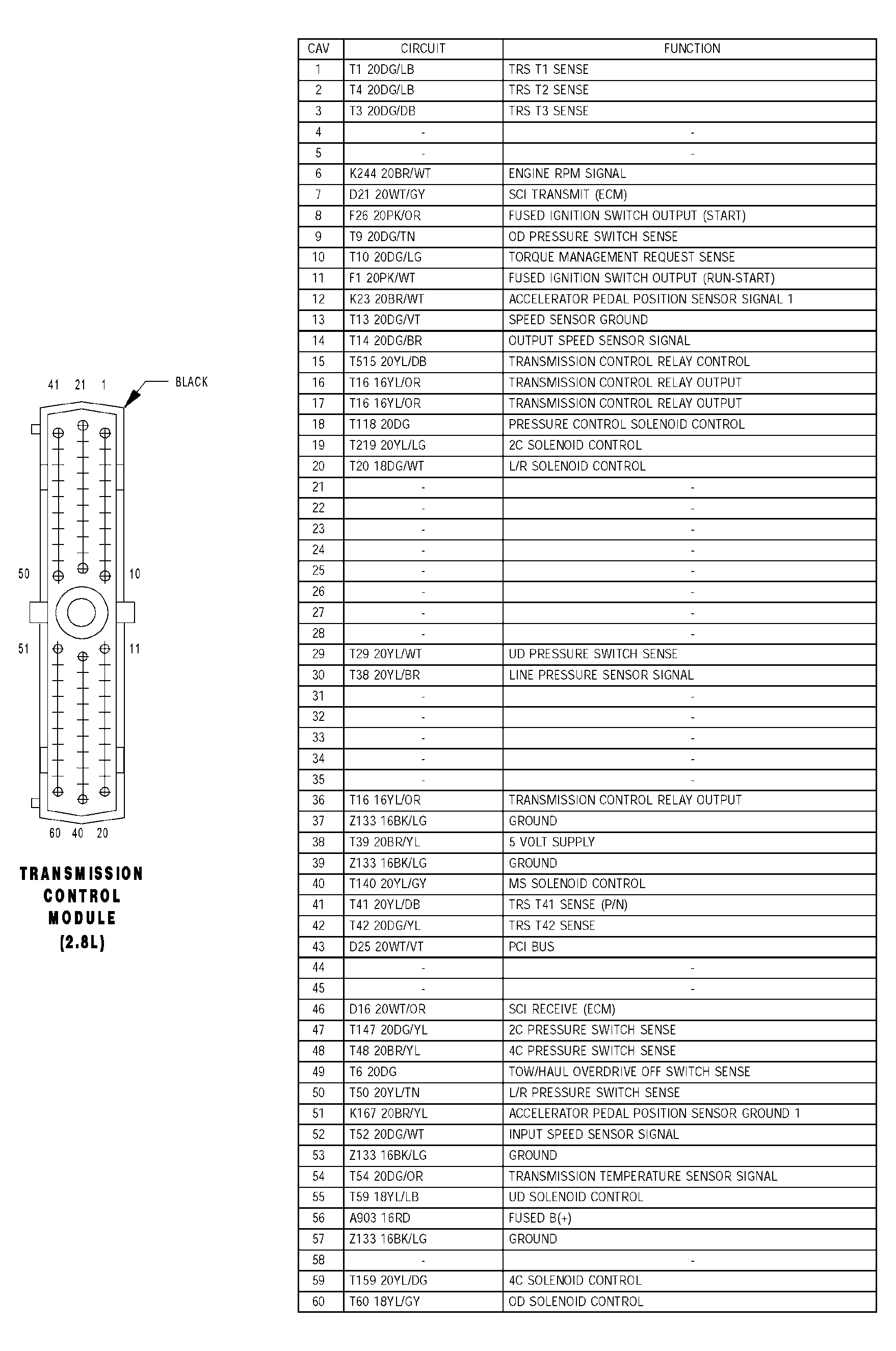

Fig 1: Transmission Control Module Connector Pinouts (2.8L) - Black 60 Way

G04550090

Courtesy of DAIMLERCHRYSLER CORP.
