Interior Lighting

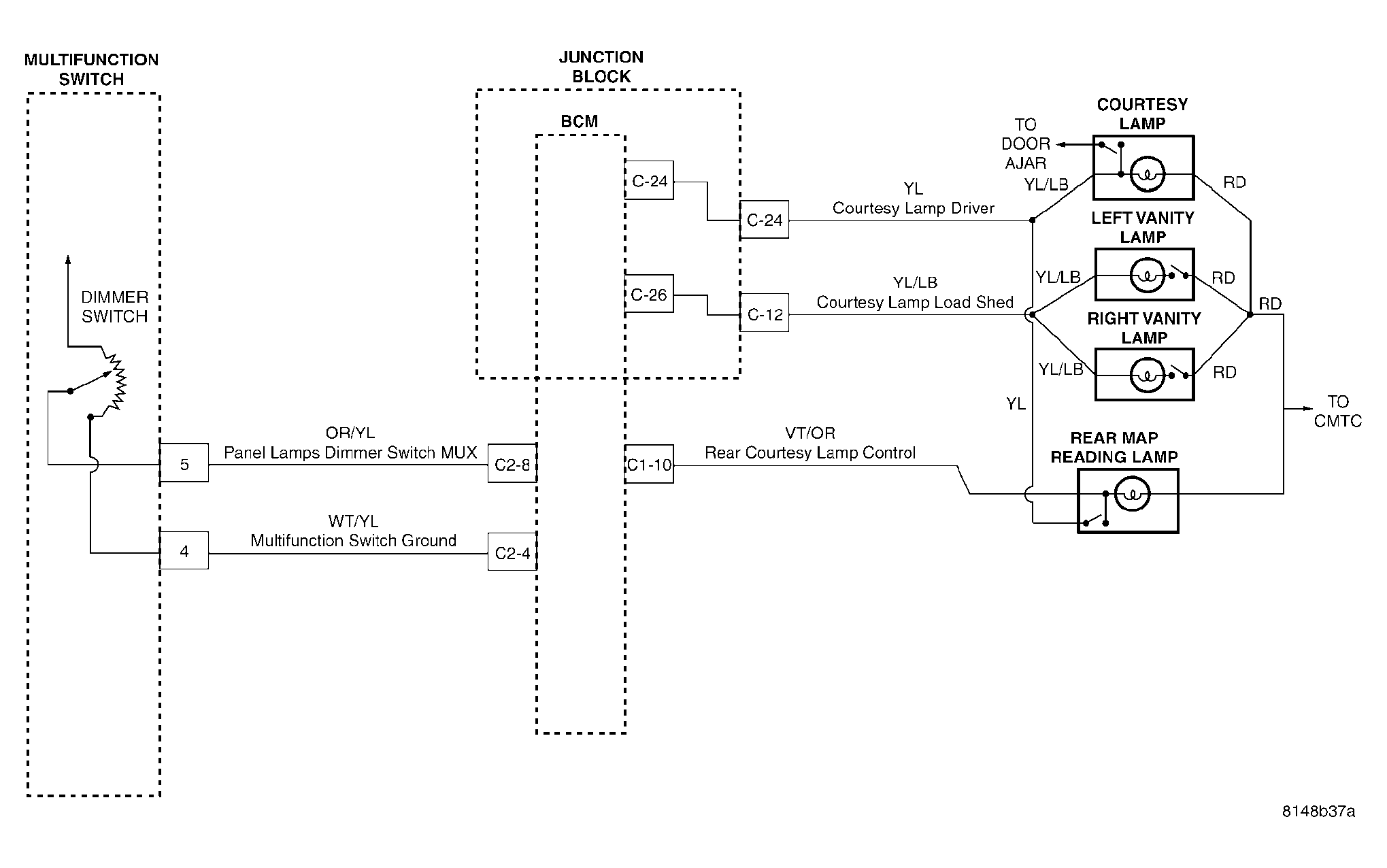

Fig 1: Schematic Diagram - Interior Lighting

G04550246

Courtesy of DAIMLERCHRYSLER CORP.
