Remote Radio Controls

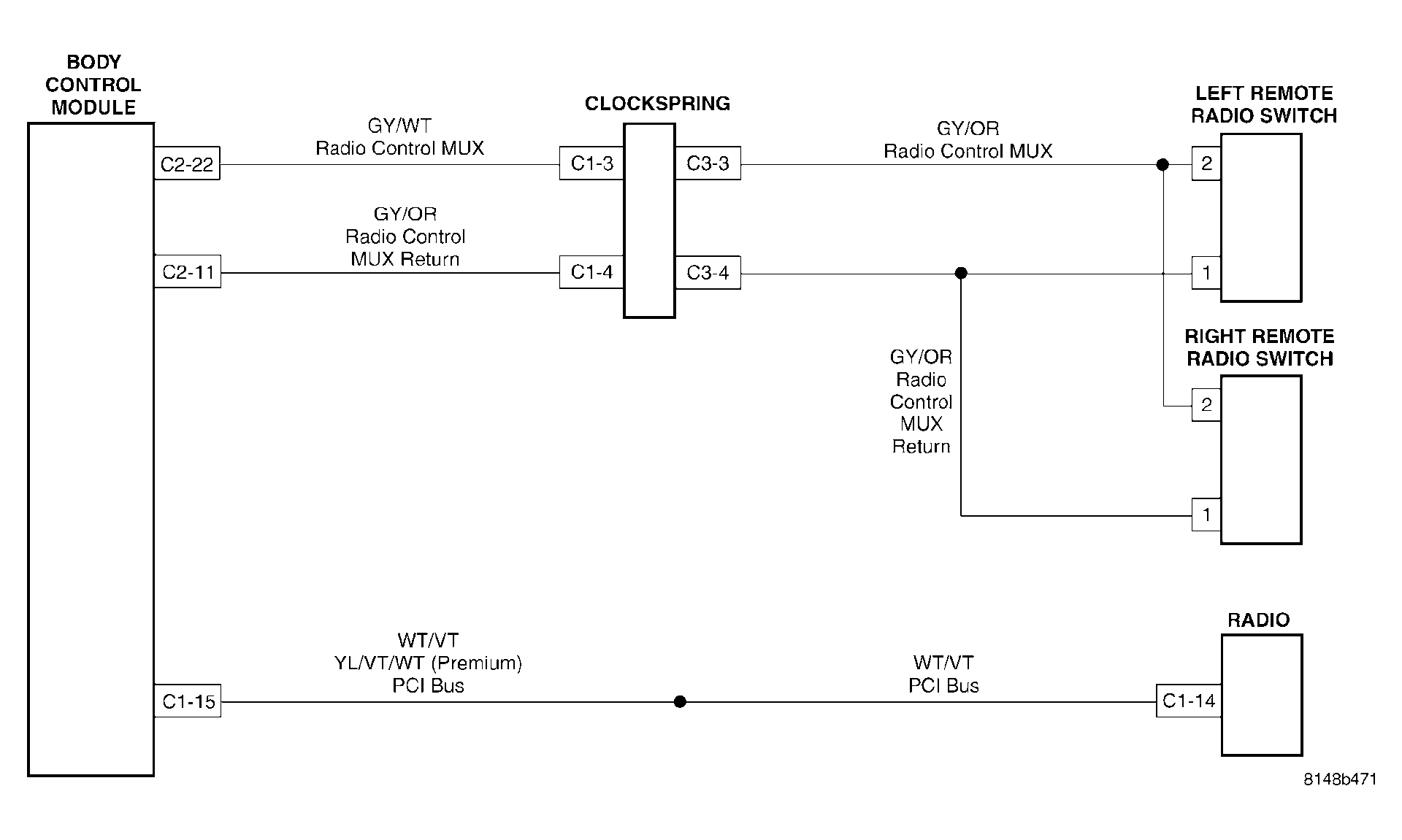

Fig 1: Schematic Diagram - Remote Radio Controls

G04550238

Courtesy of DAIMLERCHRYSLER CORP.
