Body Control Module C1 - Gray 26 Way

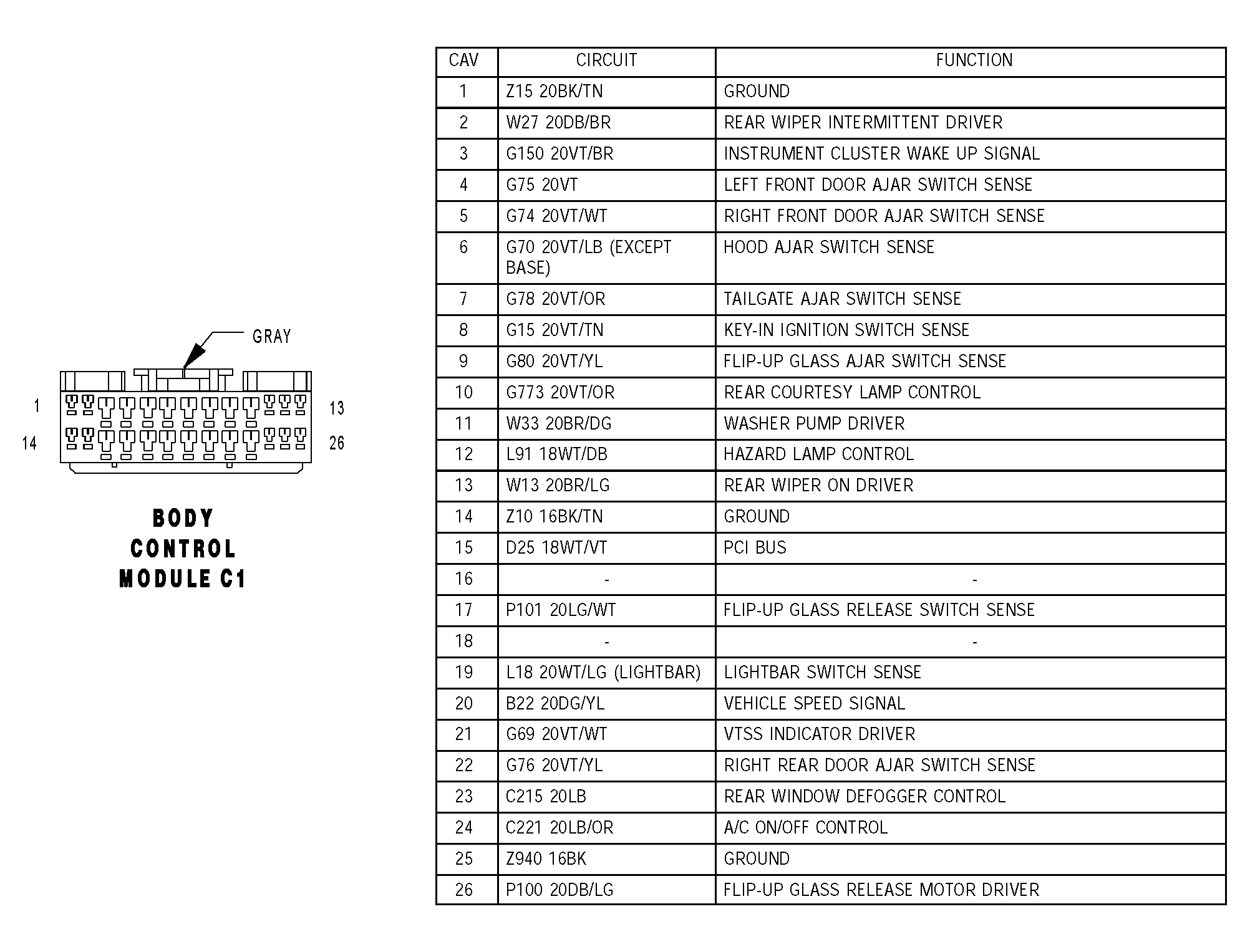

Fig 1: Body Control Module C1 Connector Pinouts - Gray 26 Way

G04550137

Courtesy of DAIMLERCHRYSLER CORP.
