Circuit Schematic

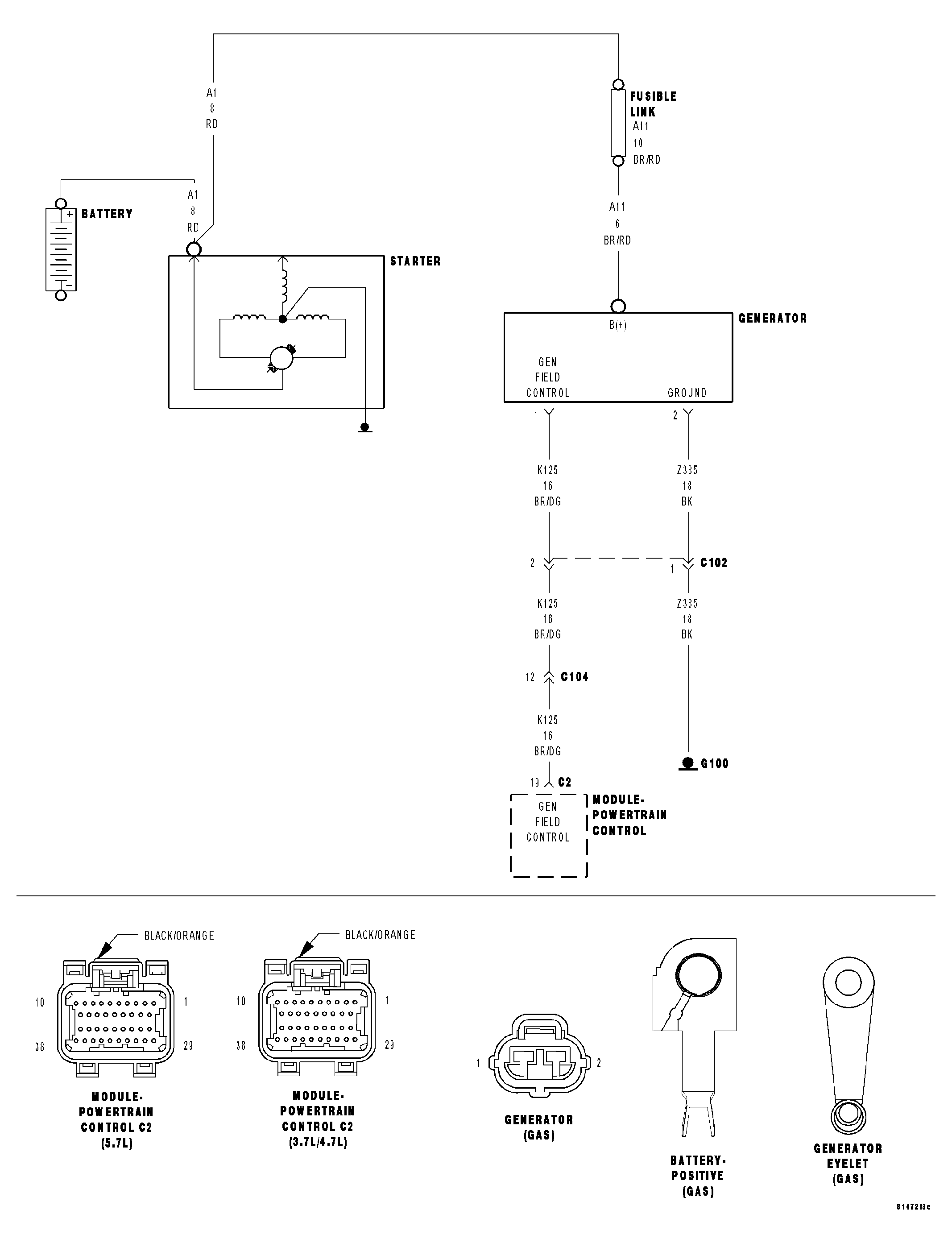

Fig 1: Starting/Charging System Circuit Schematic

GC0027143

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
