Circuit Schematic

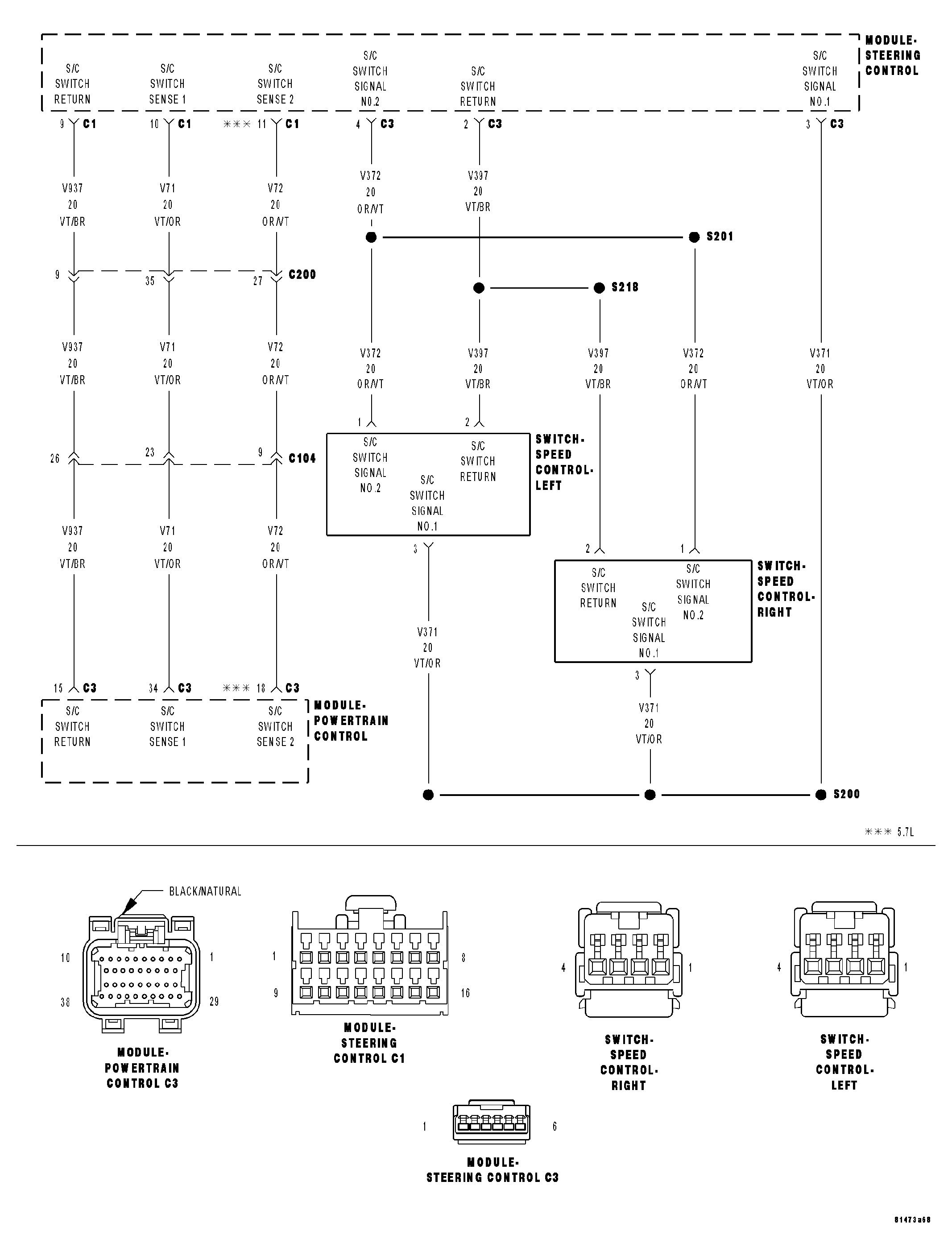

Fig 1: Speed Control Switches Circuit Schematic

GC0027150

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
