Left Headlamp Connector End View

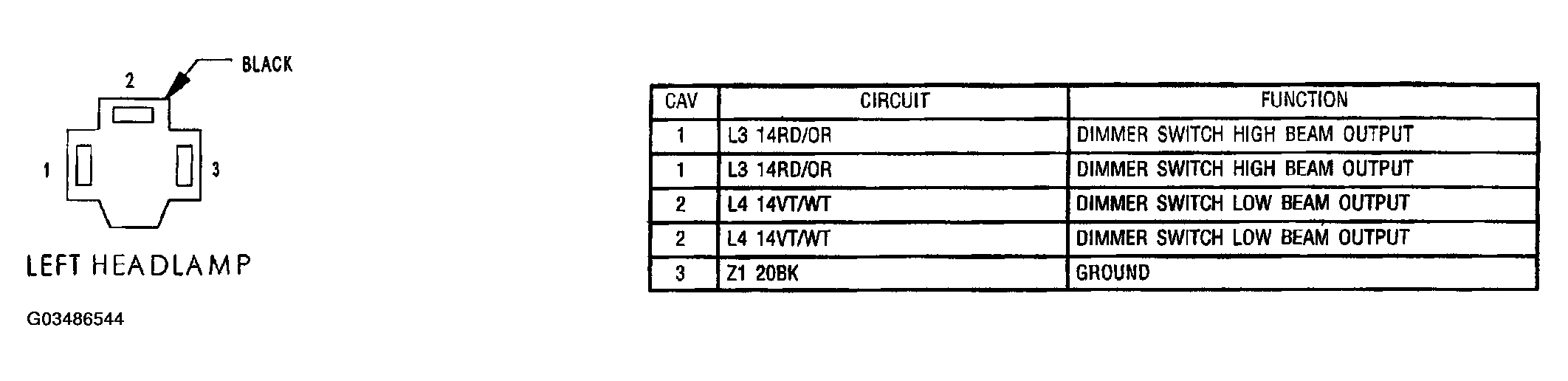

Fig 1: Left Headlamp Connector End View

G03486544

Courtesy of DAIMLERCHRYSLER CORP.
