Speed Control Servo Connector End View

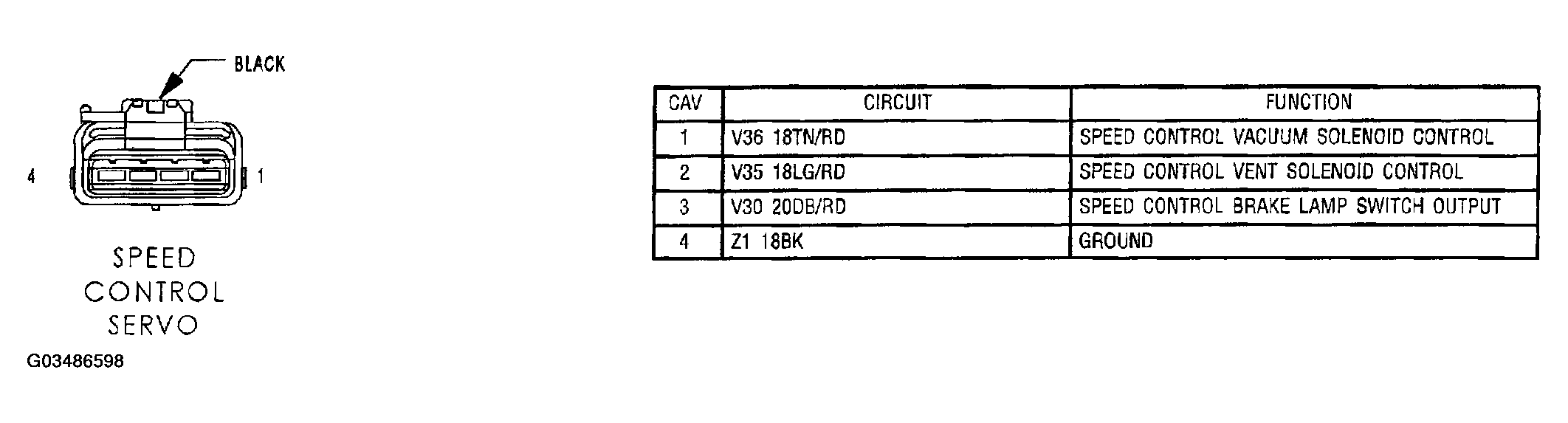

Fig 1: Speed Control Servo Connector End View

G03486598

Courtesy of DAIMLERCHRYSLER CORP.
