Throttle Position Sensor (2.4L) Connector End View

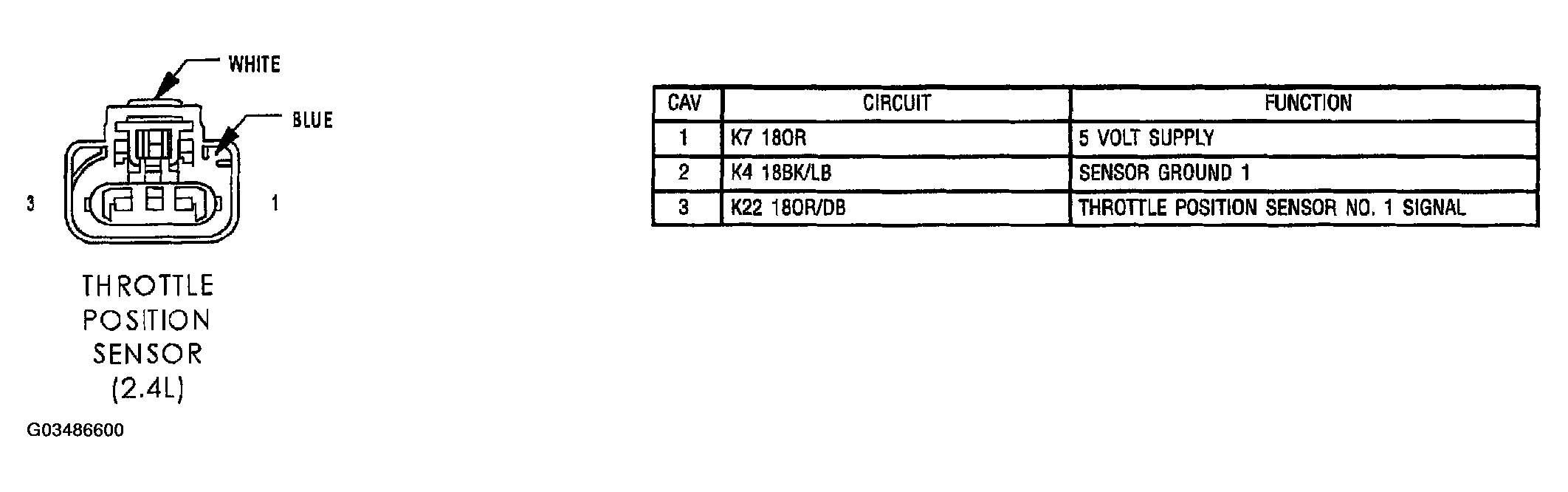

Fig 1: Throttle Position Sensor (2.4L) Connector End View

G03486600

Courtesy of DAIMLERCHRYSLER CORP.
